Engine Family: L10, M11, ISM, QSM, K19, K38, K50, QSK 19/45/60 and QSK78
This is a heavy duty mechanical puller to pull the camshaft “in chassis” without disturbing the overhead assemblies. This puller is designed to fit a wide range of engines and NOT to be used with impact wrenches. Sufficient leverage is obtained with the long extension bar and torque reaction bar provided. A hook eye is provided so that the tool and gear (when removed) can be suspended from a chain hoist, to avoid strain on the operator.
NOTE: The jaw remover is also suitable for the old version of cam gears used on L-10/M-11 engines and can be used with obsolete pullers 3824900 & 3376400.

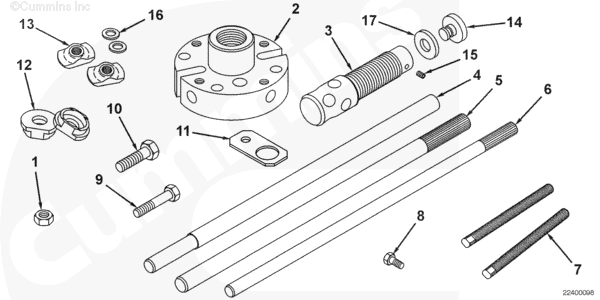

| Ref. No. | Part No. | Description | |
| 1 | 3164357 | Regular hex nut, 9/16-18 UNF | (6 required) |
| 2 | 3162997 | Remover plate | |
| 3 | 3162998 | Remover screw | |
| 4 | 3164310 | Handle | |
| 5 | 3164308 | Handle | |
| 6 | 3164309 | Handle | |
| 7 | 3164362 | Stud, 9/16-18 UNF | (4 required) |
| 8 | 3164358 | Hex head capscrew, 1/2-13 UNC X 0.75 | (2 required) |
| 9 | 3164359 | Hex head capscrew, M16 X 2-70-mm | (6 required) |
| 10 | 3164360 | Hex head capscrew, 3/4-16 UNF X 2-1/4 | (4 required) |
| 11 | 3164314 | Plate | |
| 12 | 3163742 | Retainer | |
| 13 | 3163550 | Remover jaw | |
| 14 | 3164313 | Remover jaw adapter | |
| 15 | 3164312 | Socket setscrew | |
| 16 | S-689 | Plain washer | |
| 17 | 3164311 | Thrust washer | (2 required) |
Last Modified: 29-Mar-2004
