Engine Family: Signature/ISX
This kit allows the seal to be properly positioned on the crank nose to the front cover. The tool pushes the seal until the seal mounting band is flush with the front cover. The tool also provides a method to remove the seal by connecting three ¼-20 attached nuts to the tool’s face and using the forcing screw (3163056) to pull off.

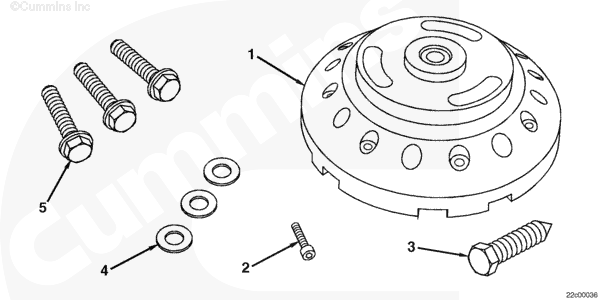

| Ref. No. | Part No. | Description |
| 1 | 3162993 | Front Crankshaft Seal Tool |
| 2 | Capscrew, ¼ x 20 x 1 ¼ (Grade 8) | |
| 3 | 3163056 | Forcing Screw |
| 4 | Washer, M15x24 | |
| 5 | Capscrew, M14x1.5×60 (Grade 10.9) |
Last Modified: 31-Jul-2003
