Engine Family: Signature/ISX
This tool uses the flywheel cap screws and positions the rear seal properly when pulled flush to the flywheel housing. This tool also uses self tapping screws to attach the tool to the seal. A forcing screw is then able to pull the tool and remove the seal.

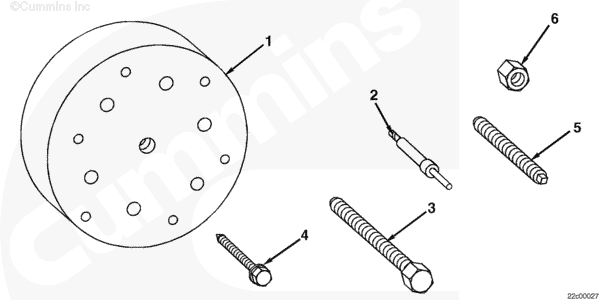

| Ref. No. | Part No. | Description |
| 1 | 3162995 | Rear Crankshaft Seal Tool |
| 2 | 3163089 | Drill/Pilot Assembly |
| 3 | 3163057 | Forcing Screw |
| 4 | Screw, Hex Washer Head Tapping |
Last Modified: 31-Jul-2003
