Engine Family: Signature/ISX

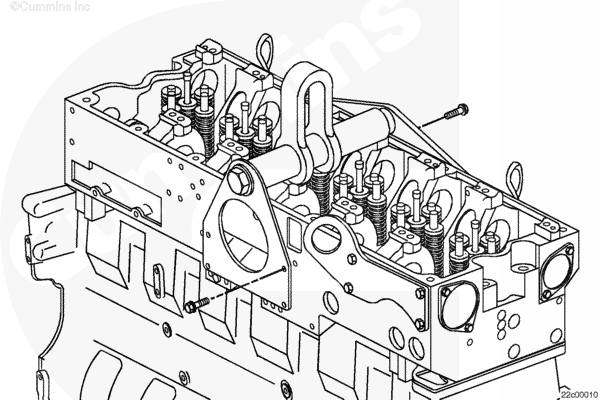

Lifts the assembled cylinder head for in and out of chassis operations. Provides placement of the cylinder head over the fire rings. To be used in conjunction with a lifting hoist or boom but cannot be conveniently used where space limitation exists. Maximum lifting capacity is 750 lbs. The fixture is required to be secured to the cylinder head with 7 cap screws, part # 3902460 (M10 x 1.5 x 25-mm lg., grade-10.9 cap screws are acceptable
Last Modified: 31-Jul-2003
