Engine Family: QSK23/QSK78
This tool is design to remove and install the camshaft. The camshaft pilot, PN 3164845 provides extra stability to the camshaft during the removal and installation procedures, and MUST be used with PN 3164610. The long camshaft pilot, PN 3164845, can also be used on the QSK45/60. The short camshaft pilot, PN 3163325, can be used on the QSK78 to remove and install the camshaft without removing the flywheel housing.

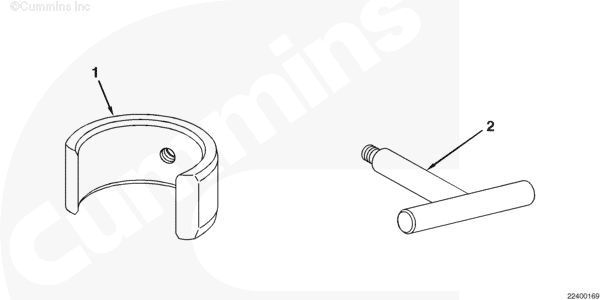

| Ref. No. | Part No. | Description |
| 1 | 3164611 | Camshaft guide (8 required) |
| 2 | 3825153 | Camshaft guide remover |
| Optional Items used with the Camshaft Removal and Installation Kit, Purchased Separately. | ||
| Not shown | 3164845 | Camshaft pilot kit (long) |
| Not shown | 3163325 | Camshaft pilot (short) |
Last Modified: 29-Mar-2004
