Engine Family: Signature, ISX, ISX W/CM870 & QSX15
This kit is used to leak test the cylinder head coolant passages.

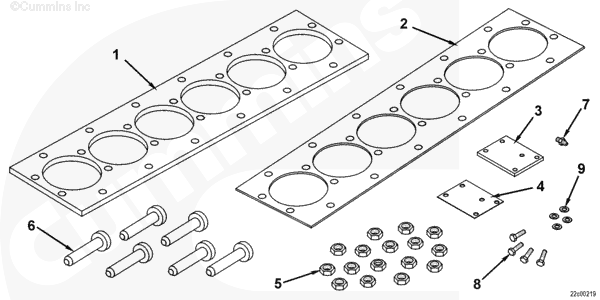

| Ref. No. | Part No. | Description |
| 1 | 3164918 | Plate |
| 2 | 3164919 | Gasket |
| 3 | 3164920 | Plate |
| 4 | 3164921 | Gasket |
| 5 | 3163842 | M18 X 1.5 nut |
| 6 | 3164195 | Injector sleeve retainer |
| 7 | 68138 | Male connector |
| 8 | 3064106 | Capscrew |
| 9 | 3009330 | Washer |
| NOTE: The following items are used with the Cylinder Head Coolant Leak Test Kit, Purchased Separately. | ||
| Not shown | 3164231 | Leak test kit |
| Not shown | 3162996 | Cylinder head lifting bracket |
| Not shown | 3375957 | Lifting strap |
Last Modified: 29-Mar-2004
