Cummins Service Products Catalog – Tool 3165049Crankshaft Gear Remover

SMALL | MEDIUM | LARGE

Engine Family: K19/QSK19/K38/K50/V28/V903/V504/V555/N855/L10/M11/ISM/QSM11/N14 & QSK23

This special puller is used to pull the crankshaft gear without heating the gear and without damage to the gear.

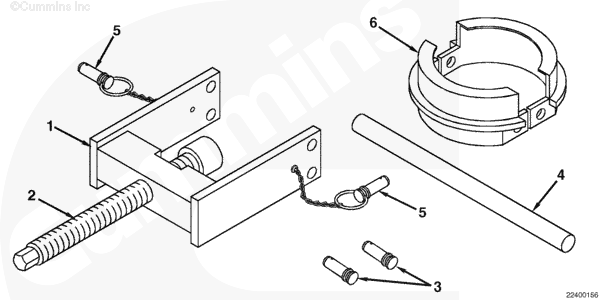

Ref. No. Part No. Description
1 3165050 Gear remover assembly
2 3376833  Remover screw
3 3165051 Clevis pin
4 3165052 Handle
5 3375841  Straight pin
Not shown S-509 Cotter pin (3/32×1)

The following jaws are used with the Crankshaft Gear Remover and must be purchased separately.

6 3375835  Remover jaw (K19/K38/K50/QSK19 & QSK23)
6 3375836  Remover jaw (V28)
6 3375837  Remover jaw (V903)
6 3375838  Remover jaw (V504 & V555)
6 3375839  Remover jaw (N855/L10/M11/ISM & QSM11)
6 3824284  Remover jaw (N14)
Last Modified:  15-Mar-2004
