Engine Family: C8.3, ISC, ISC CM850, QSC8.3, ISL, ISL CM850, QSL9
This tool is designed to be used with the replacer screw assembly, handle, and nuts from camshaft gear removal and installation kit, Part Number 3163054. This kit allows the camshaft gear to be replaced without partially removing the camshaft.

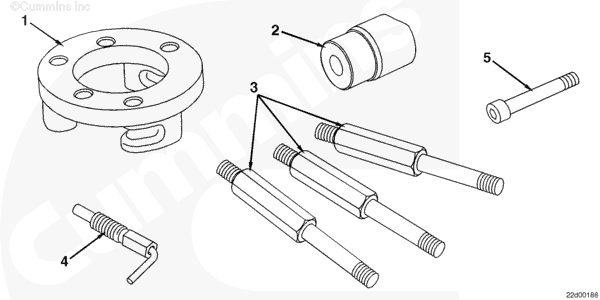

| Ref. No. | Part No. | Description |
| 1 | 3164828 | Gear remover |
| 2 | 3165094 | Camshaft pilot |
| 3 | 3165095 | Studs |
| 4 | 3165096 | Spring plunger |
| 5 | 3165144 | Socket head capscrew |
| Note: The following items are to be used with the Camshaft Replacer Kit and must be purchased separately. These items are included in Part Number 3163054. | ||
| Not shown | N/A | Replacer screw assembly |
| Not shown | 3164907 | Handle |
| Not shown | 3164753 | Nut (3 required) |
Last Modified: 12-Oct-2006
