Engine Family: L10, M11

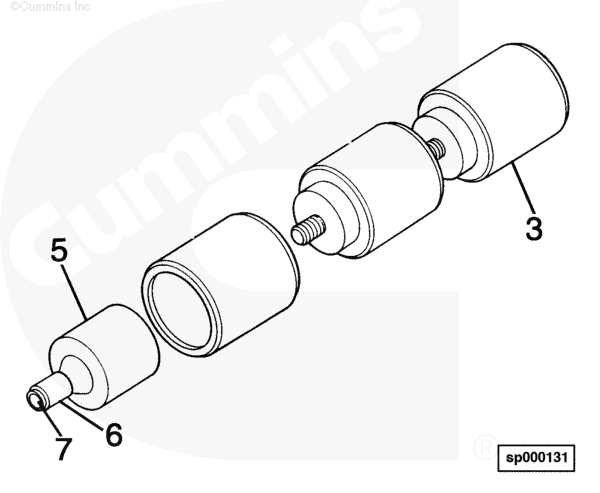

This guide pilot has a special expansion sleeve located on the front of the pilot that locates in the bore of the camshaft. The 3 components are assembled together as illustrated and provides a positive pilot to install the camshaft without scratching the cam bushings.
| Ref. No. | Part No. | Description |
| 3 | 3376942 | Guide Sleeve |
| 3376923 | Guide Expander | |
| 5 | 3376927 | Locating Pilot |
| 6 | 3376928 | Expanding Sleeve |
| 7 | 3376939 | Expander Rod |
| 3376876 Guide Expander can be ordered as desired for camshafts with 2 inch pilot hole. This is not part of 3376388 but must be used with 3376388 above in place of 3376923 Guide Expander. | ||
| Spare parts for 3376876 are: | ||
| 5 | 3376924 | Locating Pilot |
| 6 | 3376925 | Expander |
| 7 | 3376926 | Expander Screw |
Last Modified: 31-Jul-2003
