Engine Family: See Below

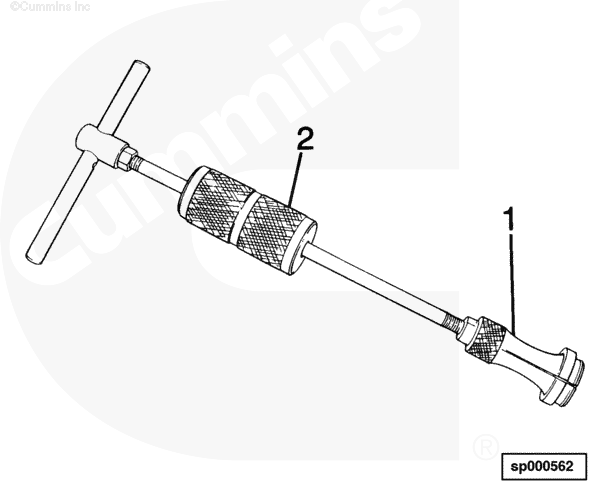

These valve seat extractors are used to remove valve seats from the cylinder head without damage to the cylinder head and the valve seat. This is the safest method of removing valve seats.
| Ref. No. | Part No. | Description |
| 2 | 3376617 | Slide Hammer/Shaft Ass’y |
| Note: Use 3376617 for any of the below pullers. Order 3376617 and selected pullers as desired. | ||
| 1 | ST 1276-1 | Puller (NH 5 1/8, ISX (Exhaust), C8.3 (2 Valve, Intake) |
| 1 | ST 1277-1 | Puller (V504, V555, V6-140, V8-185) |
| 1 | ST 1278-1 | Puller (C & J) |
| 1 | ST 1279-1 | Puller (V903, V28, N14, ISX Intake), NT, V6-200, V8-265, QST30 |
| 1 | ST 1323-1 | Puller (K19, K38, K50 (Exhaust), QSK23/78 |
| 1 | 3376146 | Puller (L10) |
| 1 | 3376799 | Puller (K19, K38, K50) (Intake), QSK19/45/60 (Exhaust) |
| 1 | 3377396 | Puller C8.3 (2 Valve, Exhaust) |
| 1 | 3824781 | Puller (M11/L10) 1995 and later |
| 1 | 3165169 | Puller (B Series) (2 valve, exhaust) |
| 1 | 3165170 | Puller (ISB (4 valve) |
| 1 | 3165185 | Puller (B Series) (2-Valve, Intake) |
| 1 | 4918189 | Puller (QSK45/60 (Intake), QSK45G/60G |
| NOTE: The following items are used with Valve Seat Extractor and must be purchased separately. | ||
| Not Shown | 3376405 | Valve insert cutter kit |
| Not Shown | 3376407 | Cutter Bit |
| Not Shown | 3376406 | Valve insert cutter |
Last Modified: 13-Apr-2004
