Cummins Service Products Catalog – Tool 3822732Top Stop Setting Fixture

SMALL | MEDIUM | LARGE

Engine Family: All With Top Stop Injectors

This tool includes all the tooling required to accurately set and/or adjust the top stop setting on all PTD topstop, Hyperbar and STC injectors.

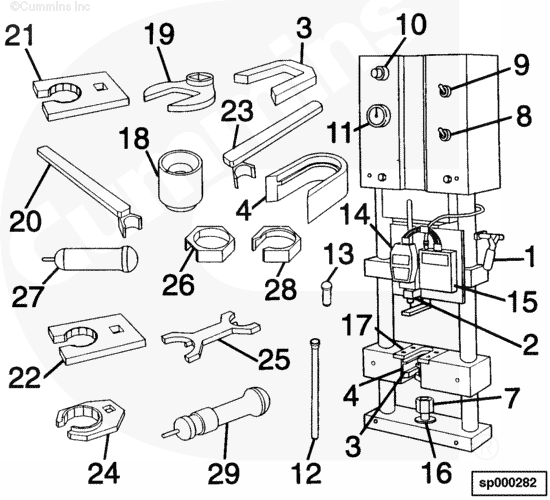

Ref. No. Part No. Description
  3822696  Top Stop Setting Fixture
1 3375391  Over Center Clamp
2 3823404  Indicator Arm
3 3822726  Injector Holding Bracket
4 3822727  Injector Adapter
5 3822935  Setting Fixture Main Ram
6 3822936  Setting Fixture Lift Ram
7 3823220  Injector Stop
8 3823403  Main Air Control Valve
9 3823402  Lift Air Control Valve
10 ST 990-40  Pressure Regulator
11 ST 1141-9  Pressure Gauge
12 205462  Injector Link
13 3052233  Injector Link
14 3822730  Digimatic Indicator
15 3822731  Digimatic Presetter
16 3823217  Bottom Plate Threaded Bushing
17 3823218  Lower Plate Wear Insert
18 3823752  Top Stop Setting Adapter (Other Tools in 3822732 kit)
19 ST 1072  Crowsfoot Wrench
20 3375165  Top Stop Adjusting Wrench
21 3375166  Crowsfoot Wrench
22 3376867  Injector Locknut Wrench
23 3376868  Top Stop Adjusting Wrench
24 3823699  STC Tappet Top Cap Wrench
25 3823279  STC Top Stop Adjusting Wrench
26 3164205  STC Oil Feed L-Nut Wrench
27 3823372  STC Oil Relieving Link
28 3823698  STC Oil Feed L-Nut Wrench
29 3823842  Top Stop Relieving Link

Other miscellaneous parts available but not illustrated:
  ST 990-97  Mini Air Filter
  ST 990-39  Air Lubricator Assembly
Last Modified:  31-Jul-2003
