Cummins Service Products Catalog – Tool 3823114Fuel Pump AFC Adjusting Kit

SMALL | MEDIUM | LARGE

Engine Family: All With AFC

This special kit is used to make necessary adjustments to the Air-Fuel-Control (AFC). Also a special o’ring installation tool is provided so that o’ring is not damaged during assembly to the no-air adjusting screw.

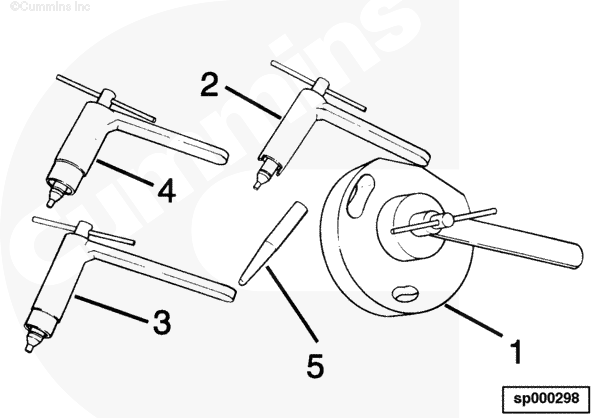

Ref. No. Part No. Description
1 3375137  AFC Adjusting Tool (All)
  3823863  Plunger/Allen Wrench
  3822949  Retaining Ring
  3822952  Spanner Socket
  3375139  O’Ring Kit
2 3822950  No-Air Adjust Tool (Special for Yellow Freight)
  3823865  Plunger/Allen Wrench
  3822949  Retaining Ring
  3822947  Spanner Socket
3 3823113  No-Air Adjust Tool (Pumps with Dual Spring and Secondary Adjusting Screw)
  3823864  Plunger/Allen Wrench
  3822949  Retaining Ring
  3822952  Spanner Socket
4 3377247  No-Air Adjust Tool (Standard No-Air Screw)
  3823864  Plunger/Allen Wrench
  3822951  Spanner Socket
  3822949  Retaining Ring
5 3375148  No-Air Screw O’Ring Installation Tool
Last Modified:  31-Jul-2003
