Engine Family: K38, K50
This kit is designed specifically to install and/or remove the AV seal from oil drillings in the cylinder block. Tools are provided to install the special seals to proper depth and sealing pressure to insure that the seals are installed properly.

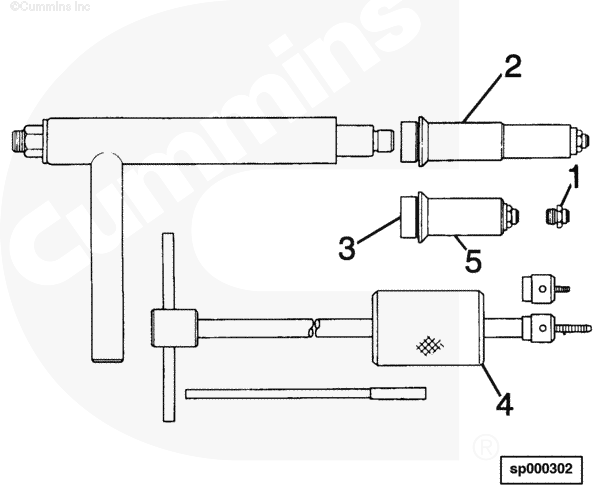

| Ref. No. | Part No. | Description |
| 1 | 3823156 | Nose Tip (10 mm) |
| 2 | 3823157 | Nose Tip (8 mm) |
| 3 | 3823158 | Nose Tip (6 mm) |
| 3823159 | AV Seal Removal Tool | |
| 4 | 3823160 | Nut (Large) |
| 5 | 3823161 | Nut (Small) |
Last Modified: 31-Jul-2003
