Cummins Service Products Catalog – Tool 3823615Liner Installation Tool

SMALL | MEDIUM | LARGE

Engine Family: See Below

This tool is used to push the cylinder liner into the cylinder block. This is especially useful for lower press fit liners.

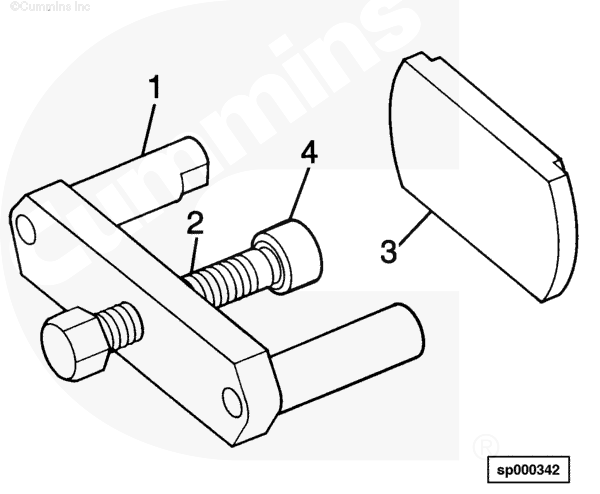

Ref. No. Part No. Description
  3823615  Liner Installation Tool (NH/NT, N14)
1 3823616  Bridge
2 3823617  Forcing Screw
3 3823618  Forcing Plate
4 3823619  Shear Pin (6 pcs)
  3824272  Liner Installation Tool (L10 & M11, ISM)
1 3824273  Bridge
2 3823617  Forcing Screw
3 3824274  Forcing Plate
4 3823619  Shear Pin (6 pcs)
  3375422  Liner Installation Tool (K19/38/50, QSK19)
1 3375423  Bridge
2 3376833  Forcing Screw
3 3163598  Forcing Plate
  3164870  Liner Installation Tool (QSK 45/60)
  3164871  Bridge
  3376833  Forcing Screw
  3163598  Forcing Plate
  3164606  Liner Installation Tool (ISX/Signature)
1 3164608  Installer fixture
2 3823617 Installer screw
3 3164607  Cylinder liner installer plate
  3164207  Liner Installation Tool (QSK78)
1 3164208  Installer fixture
2 3376833 Installer screw
3 3164209  Cylinder liner installer plate
  3164841  Liner Installation Tool (QST30)
1 3164842 Installer Fixture
2 3823617 Installer Screw
3 3823618 Cylinder liner installer plate
Last Modified:  13-Apr-2004
