Engine Family: L10

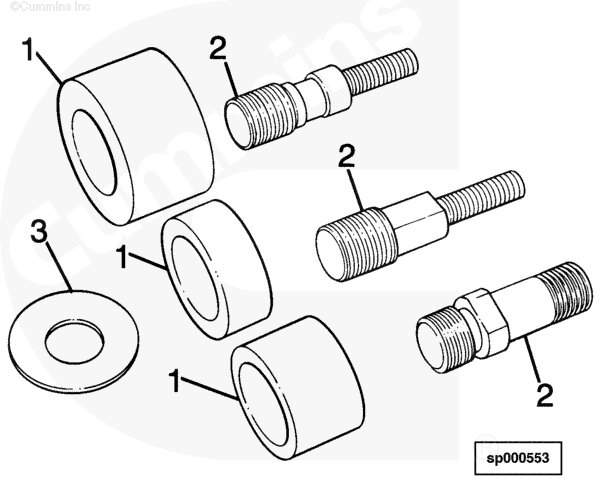

The following adapters and spacers are required to assemble pulleys on shafts and are all included in 3823765 Kit.
NOTE: 3376085 Pulley Pusher Assembly must also be used in conjunction with any one of the below listed assembly numbers. Each kit is available separately as desired.
| Ref. No. | Part No. | Description |
| 3376383 | Pulley Adapter Spacer Kit(Older L10 Acc. Drive and Alternator Drive) | |
| 1 | 3823766 | Spacer |
| 2 | 3377150 | Adapter (M12 x 1.75-6h x 3 5/8) |
| 3377401 | Pulley Pusher Adapter Kit(Water Pump Drive Pulley) | |
| 1 | 3377403 | Spacer 1 ¼ dia. x 1 1/8 thick |
| 2 | 3377402 | Adapter (M12 x 1.75 x 3 7/16) |
| 3 | 3377404 | Washer |
| 3377453 | Pulley Pusher Adapter Kit(New Style Acc. Drive Pulley) | |
| 1 | 3377455 | Spacer (1 1/8 dia. x ¾ thick) |
| 2 | 3377454 | Adapter (M20 x 2.5-6g x 2 ¾) |
Last Modified: 31-Jul-2003
