Engine Family: N855, K19, K38, K50
This kit contains the tools to make it easier to repair cylinder block coolant passage holes with external threaded inserts. The kit includes the basic fixture, locating pin and bushings to guide reamers and taps that are used in 3823679 Kit and 3824047 Kit. The kits can be purchased separately as described below.

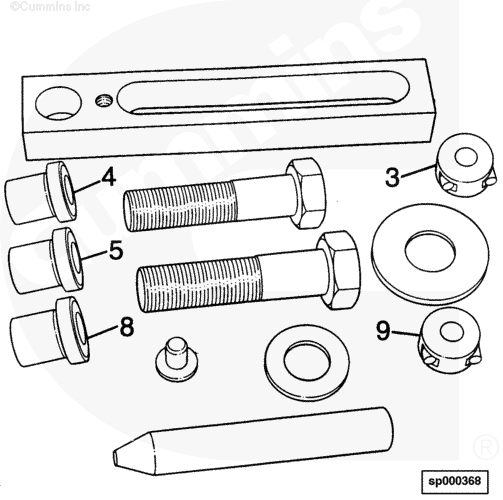

| Ref. No. | Part No. | Description |
| 3 | 3823929 | Tap Stop (.368) |
| 4 | 3823930 | Ream Bushing (.4531) |
| 5 | 3823931 | Tap Bushing (.5070) |
| 8 | 3823934 | Tap Bushing (.6300) |
| 9 | 3823935 | Tap Stop (.489) |
| Refer to the below listed part numbers for kits applicable to a specific engine series. | ||
| Refer to Kits 3823679 and 3824047 for repair inserts, reamers, taps and insert installation tools. | ||
| 3823936 | Coolant Hole Insert Fixture Kit (All NH, N14 Series) | |
| 3 | 3823929 | Tap Stop (.368) |
| 4 | 3823930 | Ream Bushing (.4531) |
| 5 | 3823931 | Tap Bushing (.5070) |
| 3823937 | Coolant Hole Insert Fixture Kit (K19, K38, K50) | |
| 8 | 3823934 | Tap Bushing (.6300) |
| 9 | 3823935 | Tap Stop (.489) Capscrew (¾-16 x 3) |
