Engine Family: K19 Series

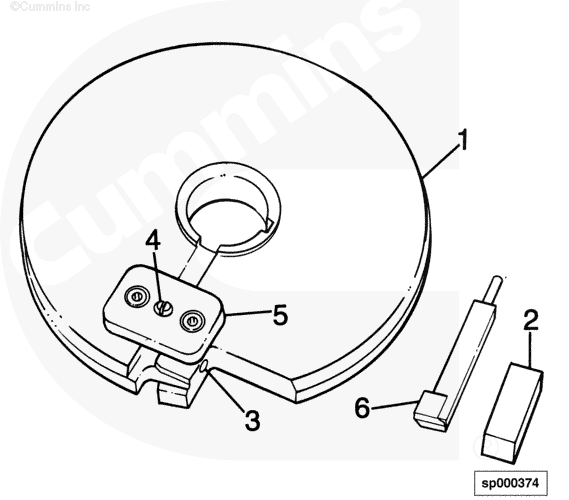

These cutter plates are used in conjunction with components of 3377356 for machining cylinder block liner counterbore for oversize liners. Select the appropriate cutter plate needed.
| Ref. No. | Part No. | Description |
| 1 | 3824052 | Cutter Plate Ass’y (.020 o.s.) |
| 1 | 3824053 | Cutter Plate Ass’y (.040 o.s.) |
| 1 | 3824054 | Cutter Plate Ass’y (.065 o.s.) |
| The above assemblies include: | ||
| 2 | 3824057 | Depth Spacer Block |
| 3 | ST 1168-20 | Swivel Pad Set Screw |
| 4 | ST 1168-56 | Spring Ball Plunger Set Screw |
| 5 | 3824055 | Cutter Holder Plate |
| 6 | 3375443 | Cutter Assembly |
| 6 | 3824056 | Cutter Assembly |
Last Modified: 31-Jul-2003
