Engine Family: All

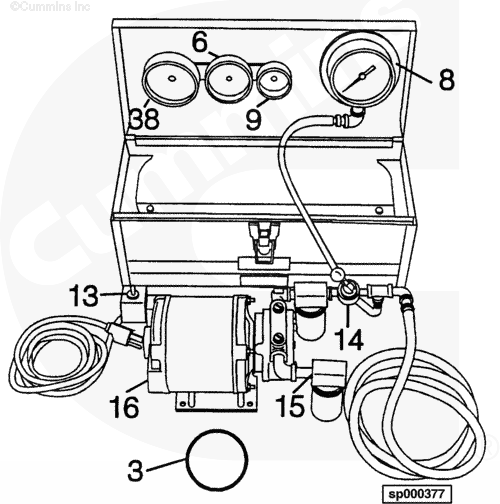

This valve vacuum tester provides all the necessary vacuum cups and seals to determine if valves are properly seated in the cylinder head using vacuum to provide a positive test. Above kits do not include cups and seals for B and C Series.
| Ref. No. | Part No. | Description |
| 3 | ST 1257-3 | Seal (NH, V903, V28) |
| 6 | ST 1257-6 | Cup (NH, V903, V28) |
| 8 | ST 1257-8 | Vacuum Gauge |
| 9 | ST 1257-9 | Cup (C & J, Small V) |
| 3 | ST 1257-35 | Seal (C & J, Small V) |
| 13 | ST 1257-13 | Toggle Switch |
| 14 | ST 1257-14 | Dump Valve |
| 15 | ST 1257-15 | Filter Muffler |
| 16 | 3376195 | Pump/Motor 220V 50/60 hz |
| 38 | 3376100 | Cup (L10) |
| 3 | 4918803 | Seal (L10) |
| 38 | 3823852 | Cup (all K Series) |
| 3 | 3823853 | Seal (all K Series) |
| 38 | 3823847 | Cup (N14) |
| 3 | 3823848 | Seal (N14) |
| *Not Shown | 4918162 | cup (QSK23/78) |
| *Not Shown | 4918163 | seal (QSK23/78) |
| *Note: MUST be purchased separately. | ||
| 4918865 Seal Kit Includes ST 1257-35, 3823853, 4918803 and 3823848, Qty. 2 each. | ||
