The Clutch Caddy has a height of 13” in the lowered position with a clutch in place. It has a maximum height of 39”.
The Clutch Caddy is designed to help a mechanic install and remove heavy 14” and 15 ½” truck clutches and flywheels in the close-quarter environment under a truck.
The Clutch Caddy includes adapters for 14” and 15 ½” clutches with 2” shaft.
The Clutch Caddy is a unique and patented tool that minimizes the danger of back injuries, hernias, crushed fingers, fractured feet and toes by taking the heavy lifting out of the mechanics hands. It enables one mechanic to raise, position, and install a heavy clutch under a truck.

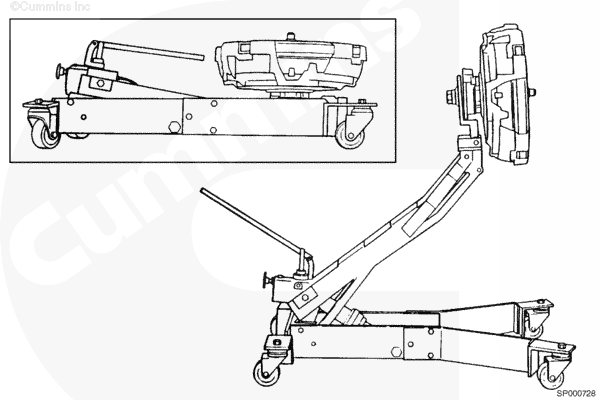

The Clutch Caddy consist of a rugged steel base, hydraulic lifting arm, and industrial type casters.
The Clutch Caddy is easy to use. The clutch is loaded in a flat position on the splined shaft, then raised and pivoted to an upright position under the truck. It has a height of only 13” in the lowered position with a clutch in place. It has a maximum height of 39”.
There are several attachments for the Clutch Caddy that aide in additional component removal and installation. There are adapters for flywheels, differentials, drive shafts, starter motors, and auxiliary cases. There are three additional splined shafts for different sized clutch applicaitons. The attachments mount on a rotating base that has an adjusting screw to assist in aligning components.
Clutch Caddy Optional Part Numbers
| Part No. | Description |
| 3824342 | Flywheel Adapter handles flywheels for 14” and 15 ½” clutches |
| 3824341 | Splined Shaft for 14” and 15 ½” clutches with 1 ¾” shaft x 1” pilot |
| 3824948 | Splined Shaft 1 ¾” Dia. x .983” pilot |
| 3824949 | Splined Shaft 1 ½” Dia. x .981” pilot |
| 3824950 | Drive Shaft Adapter |
| 3824951 | Starter Motor Adpater |
| 3824952 | Auxiliary Case Adpater |
| 3824953 | Differential Adapter |
