Engine Family: All Except B and C Series
The Injection Timing Tool is required to determine the relationship of the injector push tube travel to the piston travel so that fuel injection occurs at the proper time.
NOTE: To update your old 3823451 Injection Timing Tool to make it equivalent to 3824942, order 3824946 Adapter Kit and new 3824947 Distance Setting Gauge for L10/M11. 3824947 replaces 3376180. 3824946 Adapter Kit includes special adapters required for QSK19 series engines.

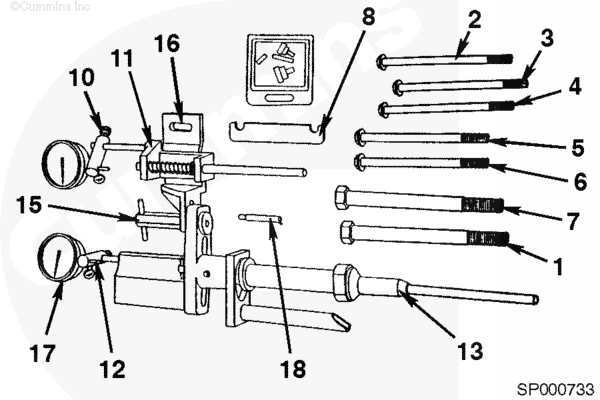

| Ref. No. | Part No. | Description |
| 1 | 3823510 | Hold Down Screw (M8 x 1.25) |
| 2 | 3823511 | Hold Down Screw (5/16-18) |
| 3 | 3823512 | Hold Down Screw (3/8-16) |
| 4 | 3823513 | Hold Down Screw (3/8-24) |
| 5 | 3823514 | Hold Down Screw (½-13) |
| 6 | 3823515 | Hold Down Screw (½-20) |
| 7 | 3823600 | Hold Down Screw (M10 x 1.25) |
| 8 | 3824947 | Distance Setting Gauge (L10 Engines) |
| 3823268 | Case | |
| 10 | 3823530 | Thumb Screw |
| 11 | 3823518 | Push Tube Side Bracket Assembly |
| 12 | 3823517 | Dial Indicator Bracket Assembly |
| 13 | 3823519 | Piston Side Plunger/Bracket Assembly |
| 3376451 | Knob (for Dets. 11 and 16) | |
| 15 | 3376452 | Locking Nut |
| 16 | 3376453 | Bracket Assembly |
| 17 | 3376408 | Dial Indicator |
| 18 | 3376409 | Dial Indicator Extension (1 ¼ in.) |
| 3824946 | Adapter Kit (for QSK19 series engines) | |
| 3824943 | Hold Down Screw (3/8-24×7) (QSK19) | |
| 3163304 | Locator Spacer (QSK19) | |
| 3824945 | Extension Plate | |
| For QSK 45/60, order parts below | ||
| 3163304 | Locator Spacer (QSK19/45/60) | |
| 3163305 | Indicator Stem Extension | |
| 3163306 | Alignment Gauge (QSK45/60) | |
| 3163307 | Hold-down Screw, L10 x 1.25mm x 165mm long | |
| For QSK 78, order parts below | ||
| 3164220 | Timing Gauge | |
| 3164221 | Hexagon Head Capscrew |
Last Modified: 31-Jul-2003
