Engine Family: L10, M11, ISM, QSM
This tool will install both oil seal and wear sleeve to the above engine applications that have a REPTO fitted.

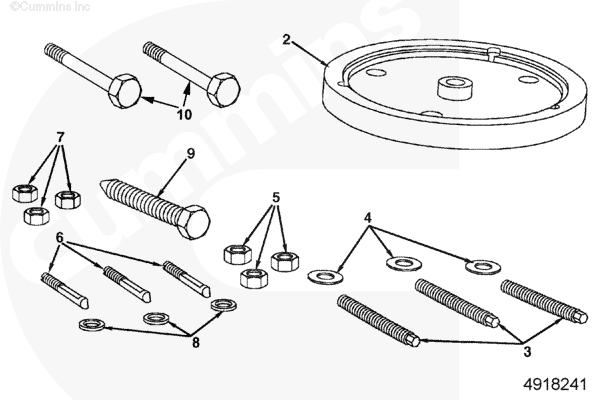

| Ref. No. | Part No. | Description |
| 2 | 3163705 | Mandrel |
| 3 | 4918238 | Stud (M14 X 1.5) |
| 4 | S-689 | Flat Washer (19/32 X 11/8 |
| 5 | 3163708 | Hexagon Nut (M14 X 1.5) |
| 6 | 3163706 | Puller Jaws |
| 7 | S-217 | Hexagon Nut (7/16-14) |
| 8 | 3000082 | Flat Washer (7/16 X 7/8) |
| 9 | 3163495 | Forcing Screw |
| 10 | 3009317 | Screw, Hex Head Cap (M10 X 1.5 X 100) |
Last Modified: 18-Dec-2006
