Engine Family: B5.9G, B5.9LPG, B Gas Plus, B LPG Plus, ISB, ISBe (4 and 6 Cylinders), QSB3.9-30, QSB4.5-30, QSB5.9-30, QSB5.9 Marine, QSB5.9-44, C Gas Plus, ISC, QSC8.3, L10, L10Gas, ISL, QSL9, L Gas Plus, M11, N14, Signature, ISX, QSX15, ISM, ISMe, QSM11, QSK19, QSK19G, QSK23, QST30, QSK45, QSK45G, QSK60, QSK60G, QSK78 and F Series
The INLINE™ 5 Datalink Adapter and its associated cables are used as a communications interface between a personal computer with the INSITE™ Service tool v6.3 or later installed and Cummins electronic engine Datalink. The INLINE™ 5 Datalink Adapter is designed for use with SAE J1708 and J1939 standard protocols using Serial or USB connection.

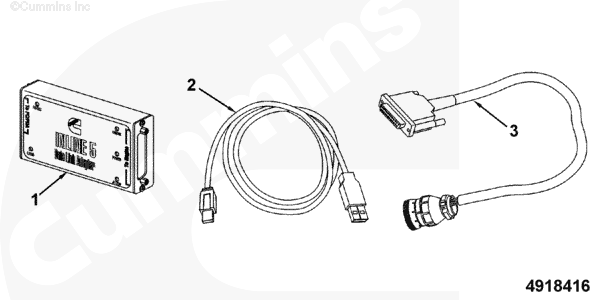

| Ref. No. | Part No. | Description |
| 1 | 3165033 | INLINE™ 5 Datalink Adapter |
| 2 | 4918419 | Cable, USB A to Mini USB (1.83m [6 feet]) |
| 3 | 3165160 | Cable, Datalink (DB25F 6-Pin Deutsch connector) |
| 3 | 3165159 | Cable, Datalink (DB25F 9-Pin Deutsch connector) |
| Not Shown | 3164143 | Case, Storage |
| Not Shown | 4918417 | Disc, Compact software INLINE™ 5 |
| Not Shown | 4918418 | Cable, Serial DB9F-DB9M (1.83m [6 feet]) |
| Not Shown | 4918436 | Boot, Ruggedized protective |
Items used with INLINE™ 5 Datalink Adapter Kit Purchased Separately
| Ref. No. | Part No. | Description |
| Not Shown | 3165141 | Cable, DB25F 2-Pin Weather-Pack and 3-Pin Deutsch with Cigarette Plug Connector |
| Not Shown | 3824440 | Cable, DB25F 8-Pin AMP Connector |
| Not Shown | 3162851 | Cable, Extension DB9F-DB9M (30.48m [100 feet]) |
| Not Shown | 3163096 | Cable, J1939 3-Pin to 3-Pin Deutsch Mini backbone |
| Not Shown | 3163597 | Cable, J1939 3-Pin Deutsch Gender Changer |
| Not Shown | 3162850 | Cable, Serial DB9F-DB9M |
| Not Shown | 4918591 | Cable, USB A to Mini USB (5m [16.4 feet]) |
Last Modified: 01-Mar-2010
