Engine Family: All Except L10, B and C Series

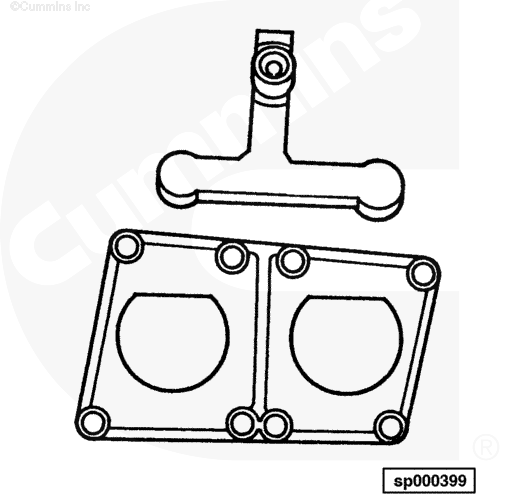

These water test plates are designed to seal all the water holes of the cylinder head for pressure testing the head for coolant leaks. Use these plates with ST 1012 Hydrostatic Tester.
NOTE: ST 1016 Clamps must be used to test heads that cover more than 3 cylinders.
| Part No. | Description |
| ST 1013 | Water Test Plates (NT (5 ½ bore)) |
| ST 1015 | Water Test Plates (V903) |
| ST 1020 | Water Test Plates (V12 (5 1/8 bore)) |
| ST 1021 | Water Test Plates (V28 (5 ½ bore)) |
| ST 1055 | Water Test Plates (V378) |
| 3375070 | Water Test Plates (K19, K38, K50) |
| O’Rings for the above adapters may be ordered as follows. | |
| ST 1013-1 | O’Rings (Lower Plate, all engines except K Series) |
| ST 1013-8 | O’Rings (Upper Plate NT (5 ½)) |
| ST 1017-2 | O’Rings (Upper Plate H, NH (4 7/8, 5 1/8)) |
| 3375071 | O’Rings (K19, K38, K50 Complete Set) |
Last Modified: 30-Jul-2003
