Engine Family: C & J, K19, NH, NT, V28, V378, V555, V903, V504
This kit contains all the necessary tools to check the alignment and/or rebore the main bearing bores when service caps are used for most Cummins engines. The boring bar is suspended in centering rings temporarily installed in undamaged journal bores. Precision checking rings are then slipped along the bar through the other bores to check alignment. Misalignment or size deviation will be apparent. Necessary boring is done without dismantling the tool. Split ring cutter holders, with preset tool bits, are assembled to the bar and a rotation and feed mechanism is attached to the end of the bar.
NOTE: ST 1177-12 and -38, used on C, J engines are not supplied when ordering the complete kit, but can be ordered as desired.
NOTE: 3375053 Thrust Bearing Surface Cutter is also used with this tool.

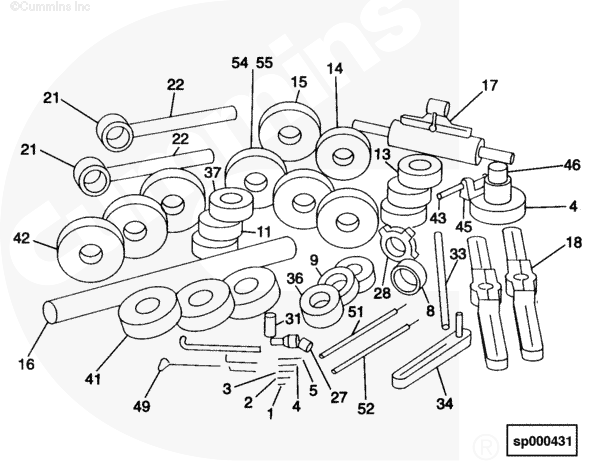

| Ref. No. | Part No. | Description |
| 1 | ST 1177-1 | Cutting Tool (5/8 long) |
| 2 | ST 1177-2 | Cutting Tool (7/8 long) |
| 3 | ST 1177-3 | Cutting Tool (1 ¼ long) |
| 4 | ST 1177-4 | Cutting Tool (1 ½ long) |
| 5 | ST 1177-5 | Cutting Tool (2 long) |
| 6 | ST 1177-6 | Capscrew (10-24×5/8) |
| 7 | ST 1177-7 | Swivel Pad Screw (¼-20x½) |
| 8 | ST 1177-8 | Cutter Holder (Small) |
| 9 | ST 1177-9 | Checking Ring (3.751 dia.) |
| 11 | ST 1177-11 | Checking Ring (4.061 dia.) |
| 12 | ST 1177-12 | Checking Ring (4.1227 dia.) |
| 13 | ST 1177-13 | Checking Ring (4.7472 dia.) |
| 14 | ST 1177-14 | Checking Ring (5.3422 dia.) |
| 15 | ST 1177-15 | Checking Ring (6.0932 dia.) |
| 16 | ST 1177-16 | Bar (2 in. x 56 in.) |
| 17 | ST 1177-17 | Bore Feed Ass’y |
| 18 | ST 1177-18 | Bore Bar Bridge |
| 21 | ST 1177-21 | Bridge Bearing |
| 22 | ST 1177-22 | Bearing Bar |
| 27 | ST 1177-27 | Swivel Joint |
| 28 | ST 1177-28 | Cutter Holder (Large) |
| 31 | ST 1177-31 | Drive Adapter |
| 33 | ST 1177-33 | Torsion Bar |
| 34 | ST 1177-34 | Torsion Bar Bracket |
| 36 | ST 1177-36 | Centering Ring (3.753 dia.) |
| 37 | ST 1177-37 | Centering Ring (4.063 dia.) |
| 38 | ST 1177-38 | Centering Ring (4.125 dia.) |
| 39 | ST 1177-39 | Centering Ring (4.750 dia.) |
| 41 | ST 1177-41 | Centering Ring (5.345 dia.) |
| 42 | ST 1177-42 | Centering Ring (6.096 dia.) |
| 51 | ST 1177-51 | Allen Wrench (5/32) |
| 52 | ST 1177-52 | Allen Wrench (3/16) |
| ST 1177-53 | Tool Box | |
| 54 | ST 1177-54 | Centering Ring (5.846 dia.) |
| 55 | ST 1177-55 | Checking Ring (5.843 dia.) |
| ST 1177-56 | Bridge Bearing Pin | |
| ST 1177-5111 | Micrometer Assembly | |
| 43 | ST 1177-43 | Micrometer |
| 44 | ST 1177-44 | Micrometer Base |
| 45 | ST 1177-45 | Micrometer Bracket |
| 46 | ST 1177-46 | Micrometer Shaft |
Last Modified: 31-Jul-2003
