Engine Family: C & J, V28, V378, V555, V903, V504
This fixture is designed to provide support and/or alignment of the tappet body while installing or removing the roller pin. This tool is required to make sure that the roller pin is not scuffed during assembly of the tappet pin, roller, and body.

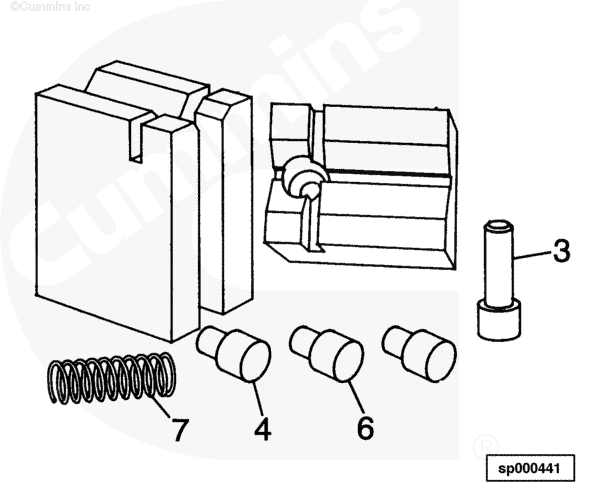

| Ref. No. | Part No. | Description |
| 3 | ST 1198-2 | Mandrel Pin |
| 4 | ST 1198-3 | Guide Pin (.485) |
| 6 | ST 1198-5 | Guide Pin (.601) |
| 7 | ST 1198-6 | Spring |
Last Modified: 31-Jul-2003
