Engine Family: All Except B and C Series

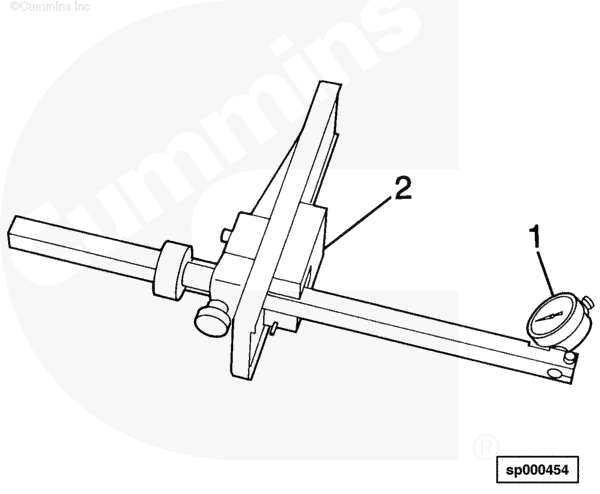

This gauge is used to check the alignment concentricity between the cylinder liner upper counterbore and the lower packing ring bore.
| Ref. No. | Part No. | Description |
| 1 | ST 1252-1 | Dial Indicator |
| 2 | ST 1252-2 | Counterbore Contact Plate(Std) |
| 2 | 3823572 | Counterbore Contact Plate(K19, K38, K50) |
| Note: 3823572 must be ordered separately. It is not part of ST 1252 Kit. | ||
Last Modified: 31-Jul-2003
