Engine Family: C & J, N14, NH, NT, V28, V378, V555, V903, V504, L10
These special ground cutters are required to cut the injector sleeve seat area after sleeves have been rolled into the cylinder head. The injector seats must be machined to the proper depth to allow specified injector tip protrusion through the cylinder head.

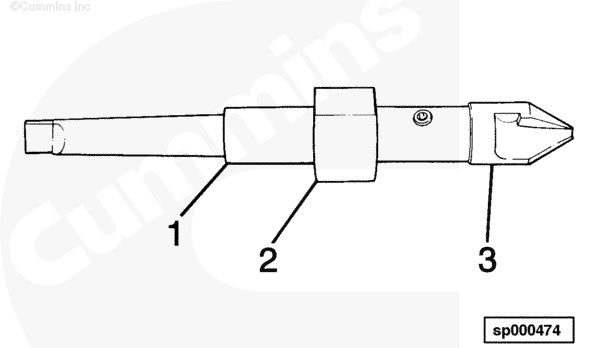

| Ref. No. | Part No. | Description |
| ST 379 | Injector Seat Cutter (C & J) | |
| 1 | ST 379-1 | Holder |
| 2 | ST 379-2 | Pilot (Also L10) |
| 3 | ST 379-3 | Cutter |
| ST 389 | Injector Seat Cutter (L Series Engines) | |
| ST 884 | Injector Seat Cutter (N14, NH, NT, V903, V28) | |
| 1 | ST 884-1 | Holder (Also L10) |
| 2 | ST 884-5 | Pilot (NH 5 1/8) |
| 2 | ST 884-6 | Pilot (NT, V903, V28) |
| 3 | ST 884-3 | Cutter (Also L10) |
| ST 920 | Injector Seat Cutter (V378, V504, V555) | |
| 1 | ST 920-1 | Holder |
| 2 | ST 920-2 | Pilot |
| 3 | ST 920-3 | Cutter |
