Engine Family: See Below
The Valve Seat Grinding Machine is used to reface the valve seats in the cylinder head. Various grinding wheels are included. Valve Guide Arbors must be ordered separately. See ST 663 and others listed. When ordering Valve Seat Grinder, specify -A or -C for 110 volt or 220 volt motor.

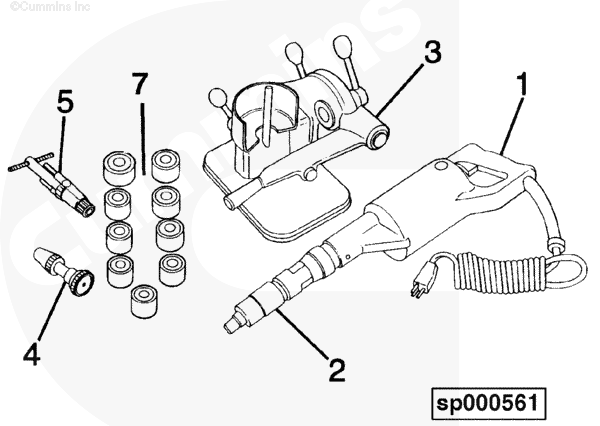

| Ref. No. | Part No. | Description |
| ST 685-A | 110 Volt 50/60 hz | |
| ST 685-C | 220 Volt 50/60 hz | |
| 1 | ST 685-1 | Motor Assembly (110 volt) |
| 1 | 3376030 | Motor Assembly (220 volt) |
| 2 | ST 685-2 | Grinder/coupling Unit (with stabilizer) |
| 3 | ST 685-3 | Wheel Dresser |
| 4 | ST 685-4 | Eccentrimeter |
| 5 | ST 685-5 | Arbor Puller |
| ST 685-6 | Carrying Case | |
| 3376302 | Diamond Holder | |
| Grinding Wheels Reference 7 Above | ||
| ST 685-7 | Grinding Wheels (1 5/8 in. x 30 deg.) | |
| ST 685-8 | Grinding Wheels (1 7/8 in. x 30 deg. (B)) | |
| ST 685-9 | Grinding Wheels (2 ¼ in. x 30 deg.) | |
| ST 685-10 | Grinding Wheels (2 ½ in. x 30 deg.) | |
| ST 685-11 | Grinding Wheels (3 in. x 30 deg.) | |
| ST 685-12 | Grinding Wheels (1 5/8 in. x 15 deg.) | |
| ST 685-13 | Grinding Wheels (1 7/8 in. x 15 deg. (B & C)) | |
| ST 685-15 | Grinding Wheels (2 ½ in. x 15 deg.) | |
| ST 685-16 | Grinding Wheels (3 in. x 15 deg.) | |
| 3375051 | Grinding Wheels (2 3/8 in. x 15 deg.) | |
| 3376077 | Grinding Wheels (1 ¾ in. x 30 deg.) | |
| 3376884 | Grinding Wheels (2 in. x 45 deg. (Optional)) | |
| 3376885 | Grinding Wheels (2 in. x 30 deg. (Optional)) | |
| 3823178 | Grinding Wheels (1 ¾ in. x 15 deg. (B)) | |
| 3823179 | Grinding Wheels (2 ¼ in. x 15 deg. (C)) | |
| 3823180 | Grinding Wheels (2 1/8 in. x 30 deg. (C)) | |
| 3823181 | Grinding Wheels (1 ¾ in. x 45 deg. (B)) | |
| 3823182 | Grinding Wheels (1 7/8 in. x 45 deg. (C)) | |
| 3823183 | Grinding Wheels (1 5/8 in. x 60 deg. (B)) | |
| 3823184 | Grinding Wheels (1 ¾ in. x 60 deg. (B & C)) | |
| 3823185 | Grinding Wheels (2 in. x 60 deg. (C)) | |
