022-001   Service Tools

Electronic Engine Controls

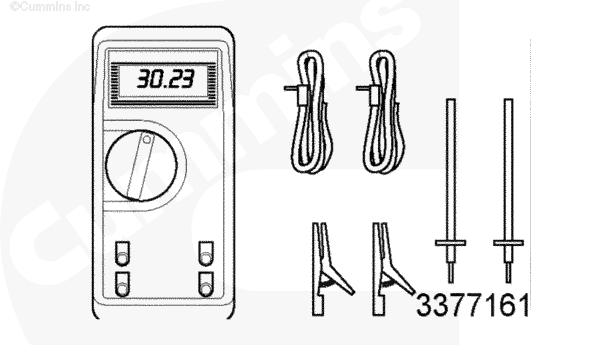

Tool Number

3377161

Multimeter

Used to measure voltage (VDC), resistance (ohms), and current (amps) of electrical circuits.

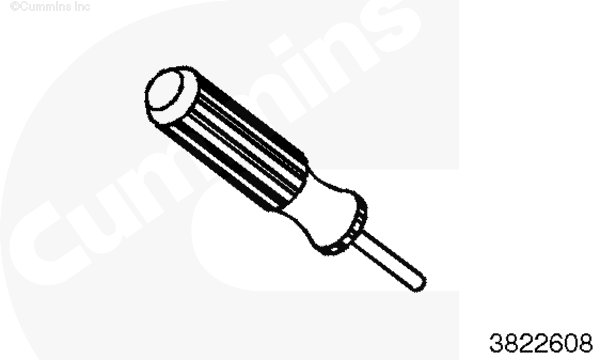

Tool Number

3822608

Weather-Pack Terminal Removal Tool

Used to repair Weather-Pack connectors.

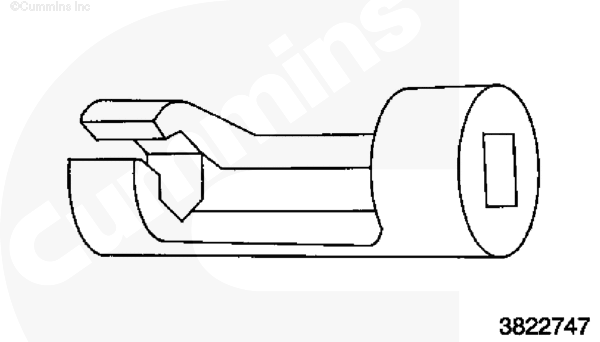

Tool Number

3822747

Engine Position Sensor Installation Tool

Used to remove and install the engine position sensor.

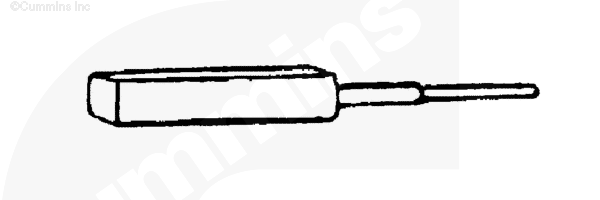

Tool Number

3822759

Amp Terminal Removal Tool

Used to repair Amp connectors.

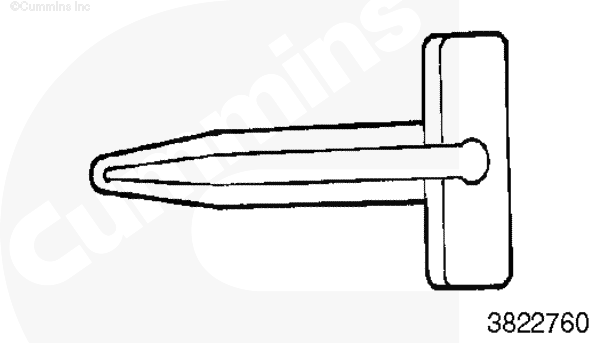

Tool Number

3822760

Deutsch Terminal Removal Tool

Used to repair Deutsch connectors.

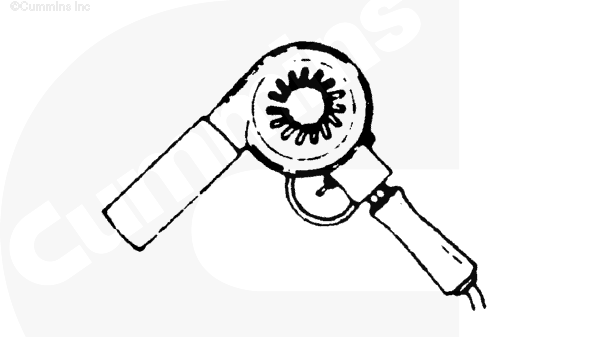

Tool Number

3822860

Heat Gun

Used to repair connector wires.

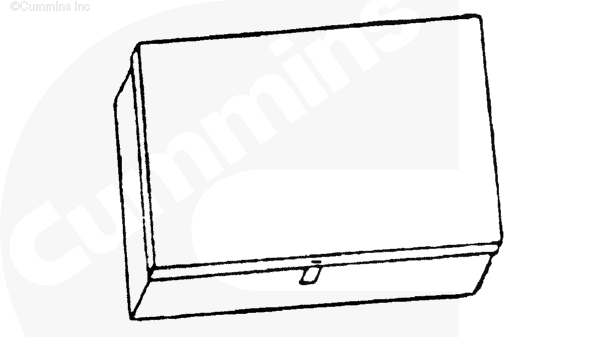

Tool Number

3824904

Wiring Repair Kit

Contains a variety of connectors, pins, seals, terminals, test leads, and other tools used to repair connectors.

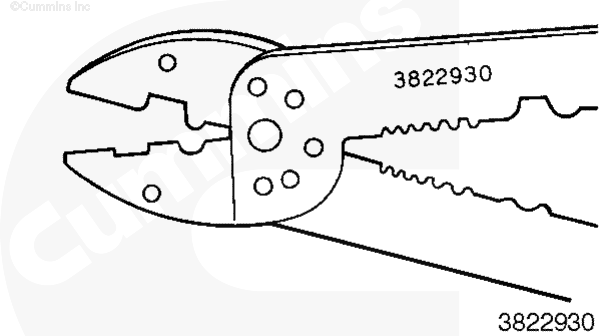

Tool Number

3822930

Wire Crimping Pliers

Used when repairing connector wires.

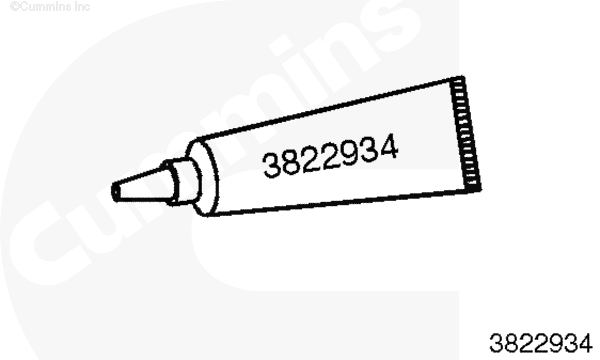

Tool Number

3822934

Lubricant DS-ES

Used to lubricate connector before installation.

Tool Number

3823257

Nut Driver (7-mm)

Used to remove and install Amp connector.

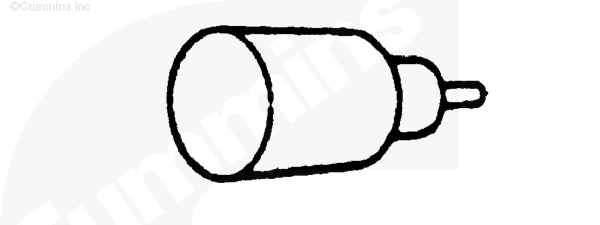

Tool Number

3823383

Amp Terminal Depth/Pressure Tool

Used to check Amp female terminals.

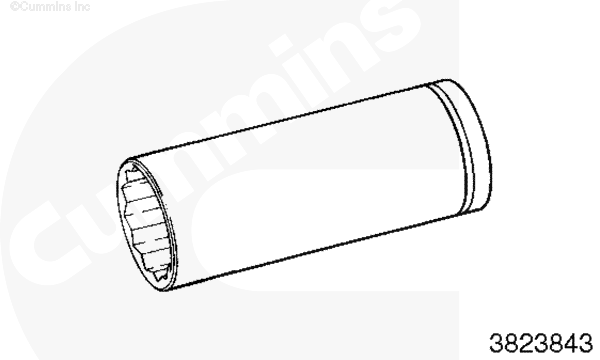

Tool Number

3823843

Deep Well Socket (1-1/4-inch)

Used to remove and install sensors and actuators.

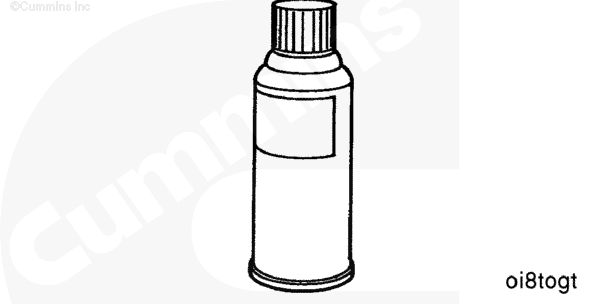

Tool Number

3824510

Electrical Contact Cleaner

Used to clean electrical contacts and connectors.

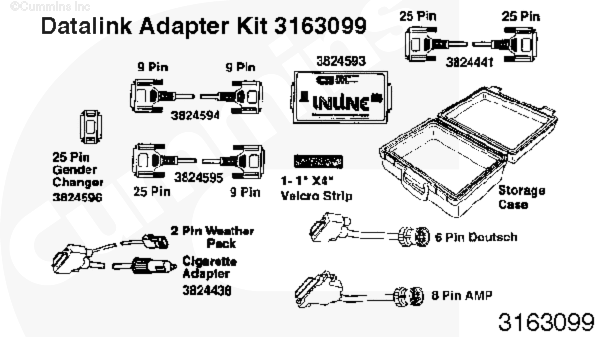

Tool Number

3163099

Datalink Adapter Kit

Inline adapter and associated cables are used to connect a computer to an engine datalink.

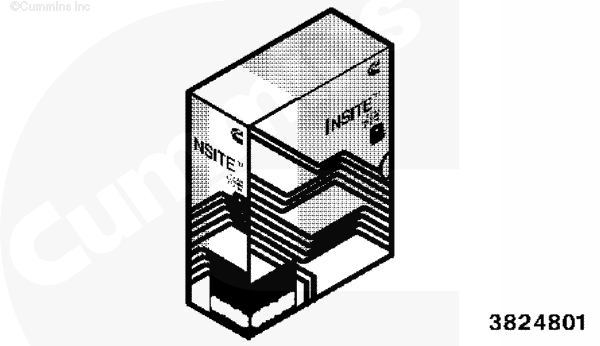

Tool Number

3824801

INSITE™ Software Kit

Used to troubleshoot, program, and adjust CELECT™ system.

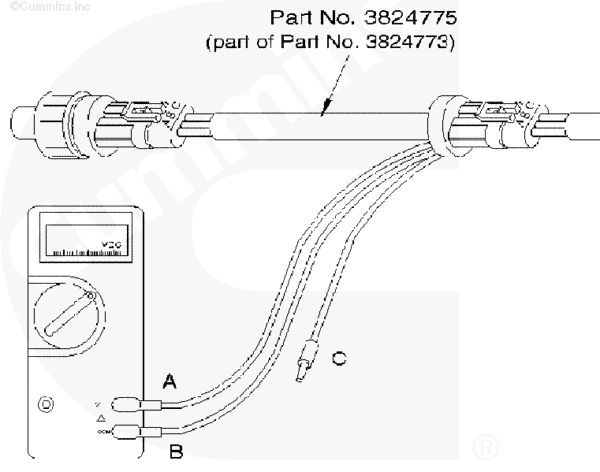

Tool Number

3824773

Pressure Sensor Breakout Cable

Used to troubleshoot pressure sensor issues.

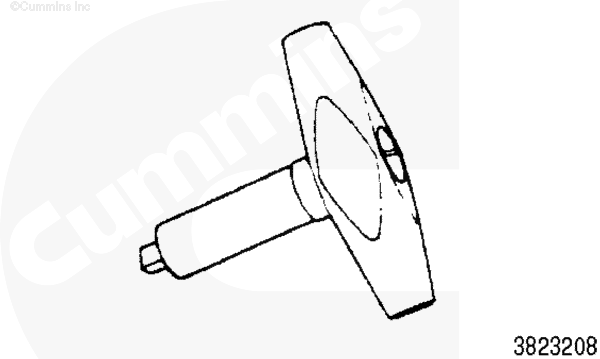

Tool Number

3823208

Inch-Pound Torque Wrench

Used to remove and tighten fasteners to a specified torque.

Tool Number

3823209

Screwdriver Socket

Used with tool holder to remove and install screws.

Last Modified:  05-Mar-2003
