B5.9G, B5.9LPG, B Gas Plus, B LPG Plus, and B Gas International Engines – 200-002   Flow Diagram, Lubricating Oil System

Table of Contents

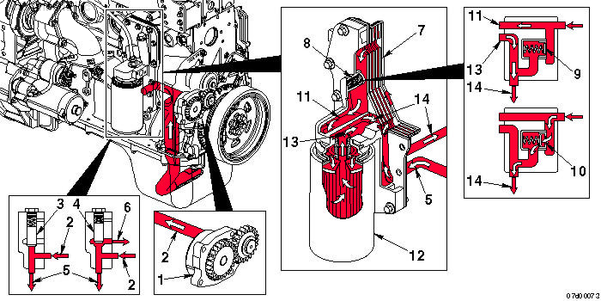

Flow Diagram

Flow Diagram

 TOC

SMALL | MEDIUM | LARGE

  1. Gerotor lubricating oil pump
  2. From lubricating oil pump
  3. Pressure regulating valve closed
  4. Pressure regulating valve open
  5. To lubricating oil cooler
  6. To lubricating oil pump supply
  7. Lubricating oil cooler
  8. Filter bypass valve
  9. Filter bypass valve closed
  10. Filter bypass valve open
  11. To lubricating oil filter
  12. Full-flow lubricating oil filter
  13. From lubricating oil filter
  14. Main lubricating oil rifle.

SMALL | MEDIUM | LARGE

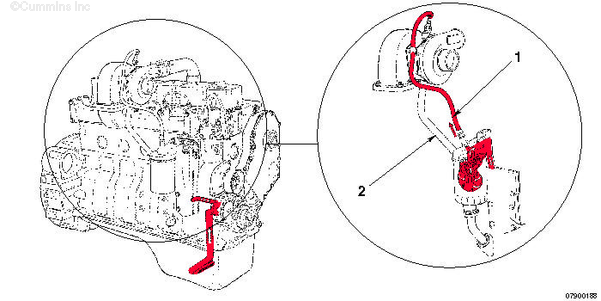

Lubrication for the Turbocharger

  1. Oil supply
  2. Oil drain.

SMALL | MEDIUM | LARGE

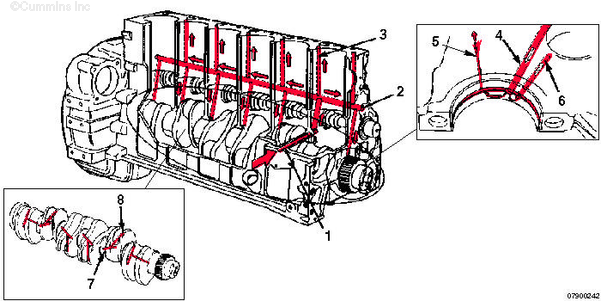

Lubrication for the Power Components

  1. From lubricating oil cooler
  2. Main lubricating oil rifle
  3. To valve train
  4. From main lubricating oil rifle
  5. To piston cooling nozzle
  6. To camshaft
  7. Crankshaft main journal
  8. Connecting rod journal.

SMALL | MEDIUM | LARGE

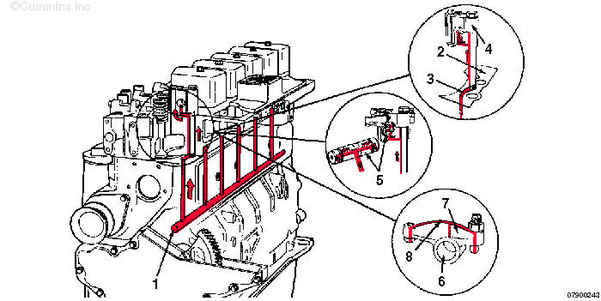

Lubrication for Overhead

  1. Main lubricating oil rifle
  2. Cylinder head gasket
  3. Transfer slot
  4. Rocker lever support
  5. Rocker lever shaft
  6. Rocker lever bore
  7. Rocker lever
  8. Trough.
Last Modified:  02-Jan-2008
