B5.9G, B5.9LPG, B Gas Plus, B LPG Plus, and B Gas International Engines – 200-004   Flow Diagram, Air Intake System

Table of Contents

Flow Diagram

Flow Diagram

 TOC

SMALL | MEDIUM | LARGE

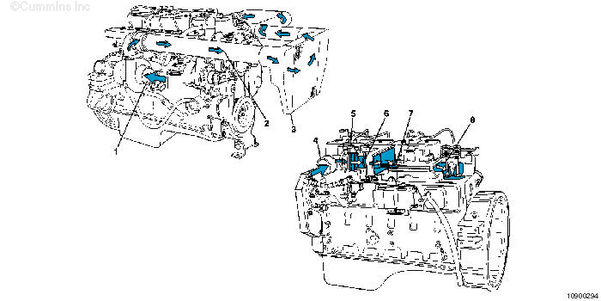

  1. Intake air inlet to turbocharger
  2. Turbocharger air to charge air cooler
  3. Charge air cooler
  4. Air inlet
  5. Mixer
  6. Throttle body
  7. Intake manifold
  8. Intake valve.
