M11 Series – Service Manual – 022-001   Service Tools

Cooling System

Tool Number

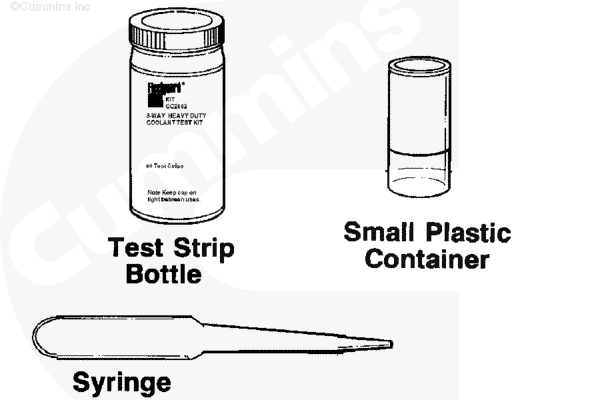

CC-2602
Cooling System Test Kit

The Fleetguard® coolant test kit is used to check the concentration of coolant additives in the cooling system.
Tool Number

CC-2800
Refractometer

The Fleetguard® refractometer is used to measure the freezing point protection and antifreeze concentration.
Tool Number

ST-647
Standard Puller

Remove the stamped steel water pump pulley. Use with two capscrews 5/16 x 18 x 2.
Tool Number

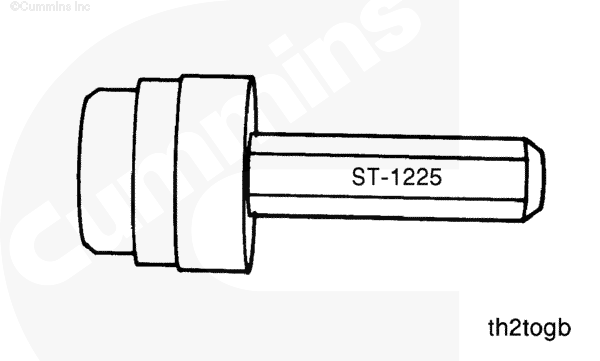

ST-1225
Thermostat Seal Mandrel

Install the thermostat seal in the thermostat housing.
Tool Number

ST-1293
Belt Tension Gauge

Measure the fan drive v-ribbed belt tension.
Tool Number

3376326
Pulley Installation Tool

Install drive pulleys. Use in conjunction with Part No. 3377401 adapter.
Tool Number

3377462
Digital Optical Tachometer

Used to measure rpm of a viscous fan.
Tool Number

3376488
Guide Pin

Two guide pins are used to install the water heater plate.
Tool Number

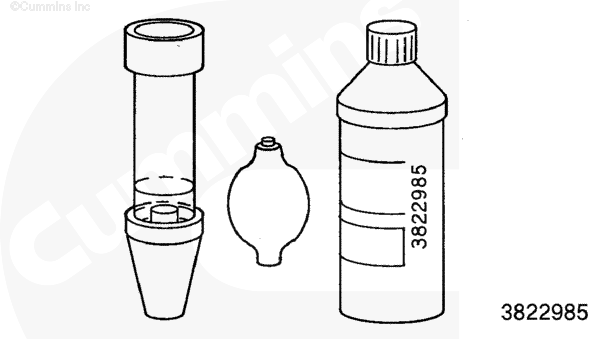

3822985
Combustion Gas Leak Test Kit

Includes: Part No. 3822986, test fluid; Part No. 3822987, adapter; and Part No. 3877612, instructions.
Tool Number

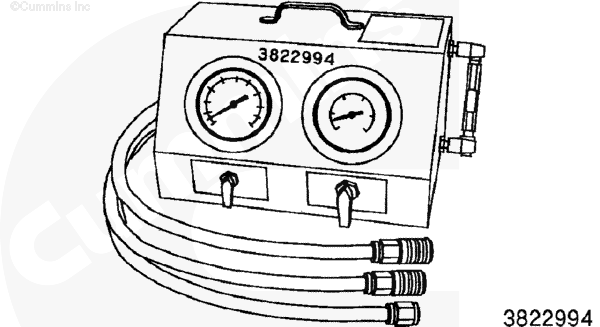

3822994
Coolant Pressure/Temperature/Flow Analyzer Kit

Includes: Part No. 3822995 pressure gauge; Part No. 3822996, temperature gauge; Part No. 3822997, Flow Sight Glass, Part No. 3822998 Compuchek® fitting (Female); and Part No. 3377613, instructions. Optional: Part No. 3823099, hose extension kit, is also available.
Tool Number

3824117
Bearing Installation Tool

Used to replace the water pump drive needle bearing in the gear housing.

Last Modified:  20-May-2003
