N14 Base Engine Troubleshooting and Repair Manual – 022-001   Service Tools

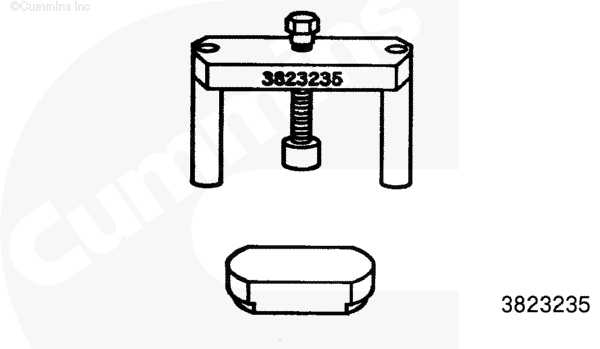

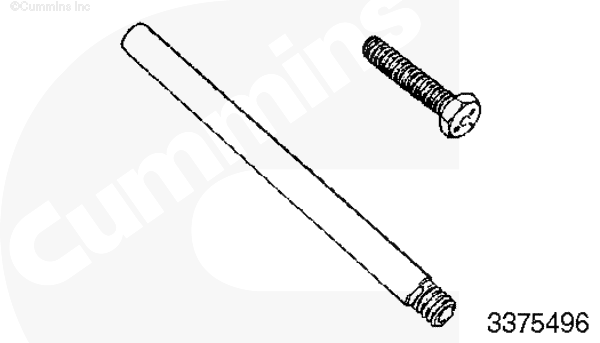

Used to remove the main bearing caps from the cylinder block.

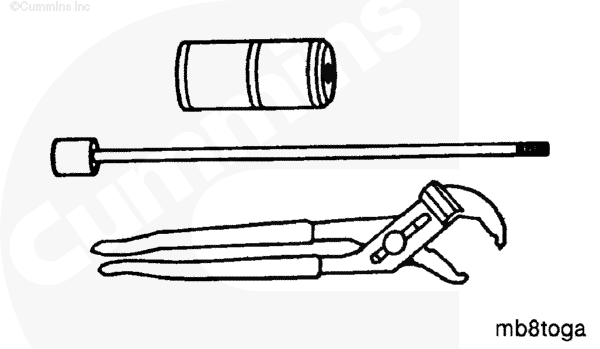

Used to replace cylinder block camshaft bushings.

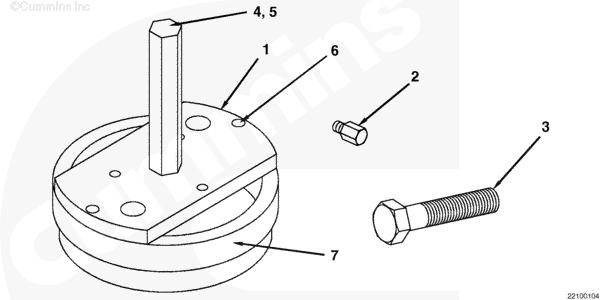

Used to pull or install the front crankshaft seals with and/or without a wear sleeve. Includes: Top plate, Part Number ST-1259-1, and seal puller screw, Part Number ST1259-6.

Used to inspect components for cracks.

Used to drill into the front oil seat to provide a pilot hole for the puller screws. Use two Number 31 (0.120) drills.

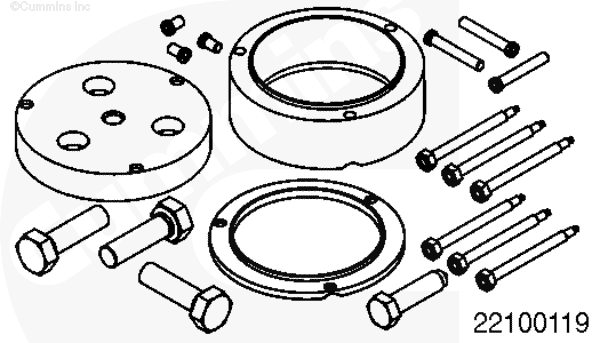

Used to align the rear cover plate and install the rear crankshaft seals with or without wear sleeves.

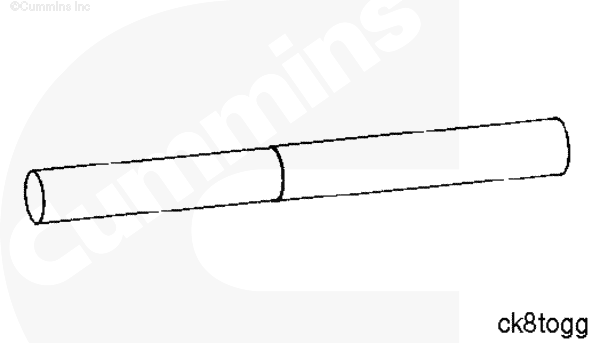

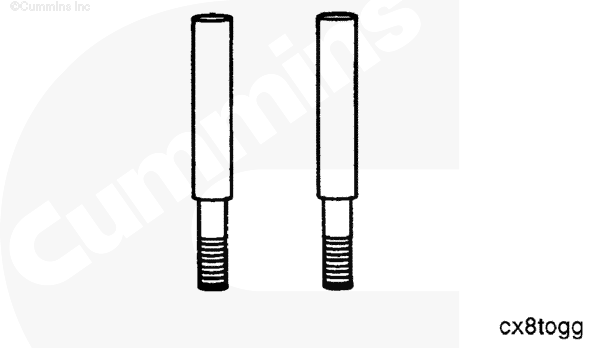

Used to protect the crankshaft journal by guiding the connecting rod during installation or removal.

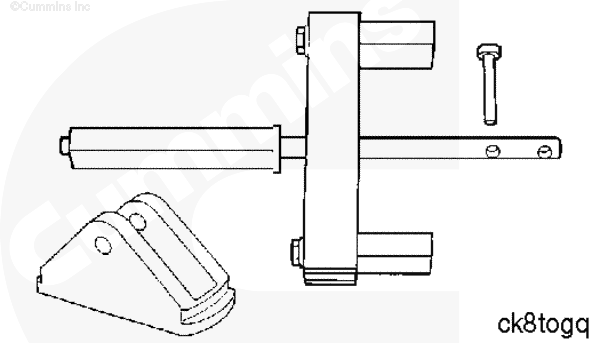

Used to remove the cylinder liners from all current engine series.

Used to remove camshaft bushings.

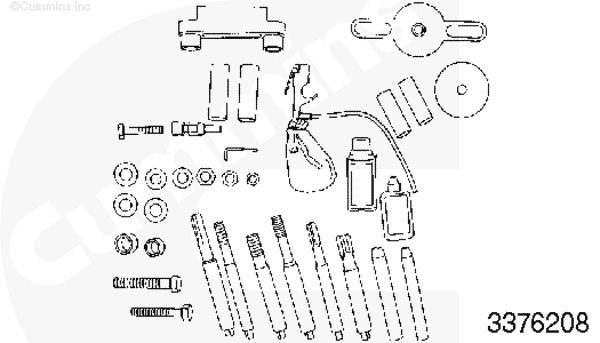

Used to salvage cylinder blocks with damaged cylinder head capscrew threads.

Used to prevent contamination of the engine block during counterbore repairs.

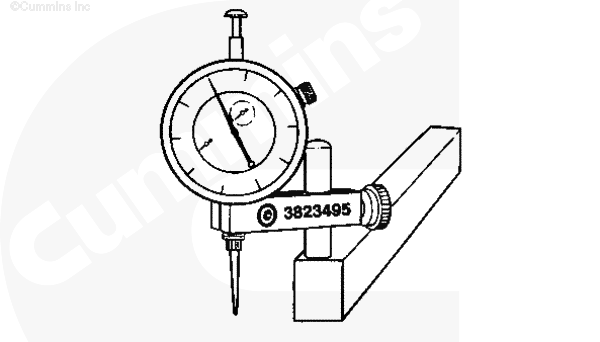

Used to measure the counterbore ledge.

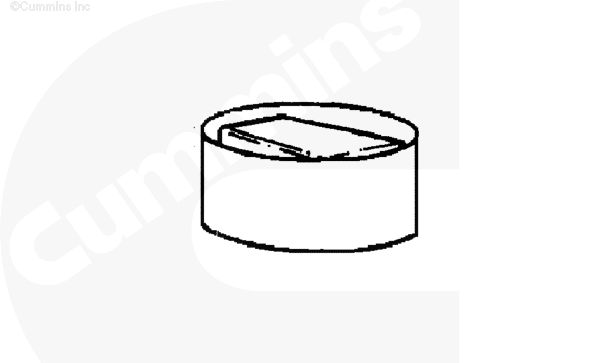

Used to install cylinder liners into the block.

Used to clean machine surfaces prior to the installation of thread repair inserts, coolant passage surfaces, and upper deck repair sleeves.

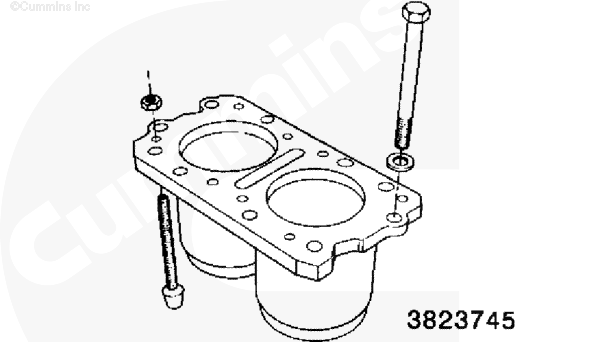

Used to check cylinder block counterbore leaks.

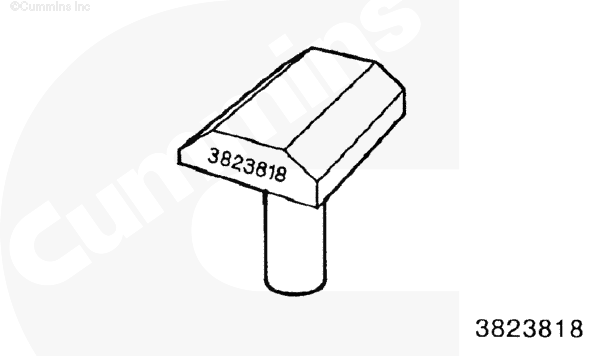

Used to remove and install main bearings.

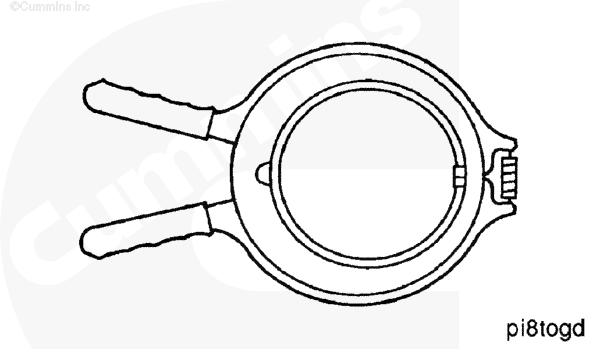

Designed to install piston rings on the piston without damaging or distorting the rings.

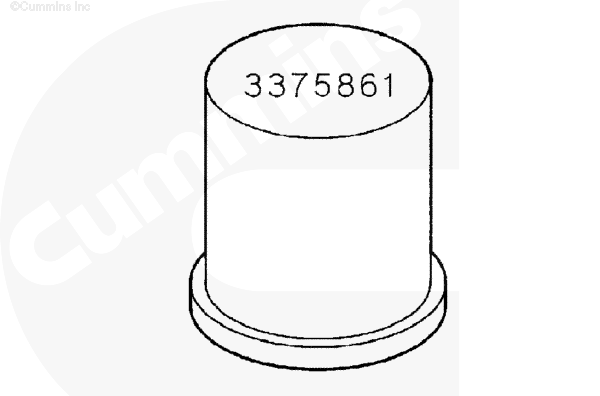

Used to drive the accessory drive oil seal and wear sleeve into the gear cover while mounted.

Used to tighten the rod capscrews

Used to remove and replace accessory drive support bushings.
