Centinel System – Repair Manual – 022-001   Service Tools

Used to plug oil passages and drillings during a repair process.

Use to remove or install valve spring retainers, valve springs, and valve seals.

Use to measure head bolts.

Use to remove and install camshaft bushings.

Use with the hydraulic camshaft bushing installation and removal tool, Part Number 3823621.

Use with the hydraulic camshaft bushing installation and removal tool, Part Number 3823621.

Use to remove the cylinder head from the cylinder block.

Use to clean carbon, rust, and corrosion from the engine block and parts.

A tool which produces the amount of torque required to rotate Signature™ 600 capscrews. It has a square drive size of 3/4-inch, an output of 75 to 900 ft-lbs and a continuous working torque of 500 ft-lb when using a 3/8-inch unrestricted hose and a 90 psi pressure source.

Use to tighten both the cylinder head bolts and the main bearing cap bolts. The socket has sufficient length for Signature™ 600 and is laser marked at 90-degree increments.

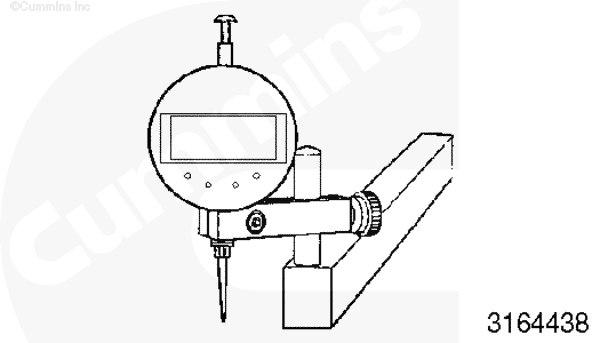

Use to measure liner protrusion, injector protrusion, cylinder block counterbore depths, and valve intrusion and/or protrusion.

Use to push the valve guide seals onto the valve and valve guide when assembled in the head.

Use to remove the valve seal.

Use to press the valve guides into the cylinder head to the proper assembled height.

Use to install the intake valve seat into the cylinder head.

Use to install the exhaust valve seat into the cylinder head.

Use to remove the exhaust valve seat from the cylinder head.

Use to remove the intake valve seat from the cylinder head.

Use to remove the valve guides from the cylinder head.

Use to determine if the valves are correctly seated in the cylinder head. The seal ring, Part Number ST1257-3, and vacuum cup, Part Number ST1257-6, are purchased separately.

Use with the valve seat puller to remove the valve seat insert from the cylinder head.

Use to inspect cylinder heads and other ferrous castings that can not be magnafluxed for crack detection.

Use to cut a groove circumferentially in the inside diameter of a valve seat to allow the seat extractor a suitable grip area.

Use to test the fuel passages in the cylinder head. Use with leak test kit, Part Number 3164231, purchased separately.
