Centinel System – Repair Manual – 022-001   Service Tools

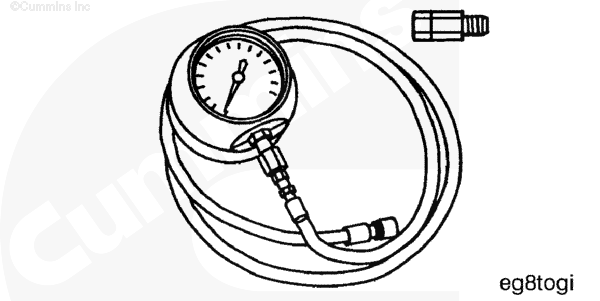

Used to measure engine intake manifold pressure.

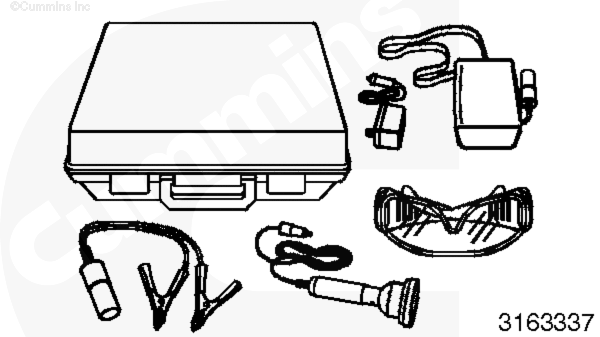

Used in conjunction with Part Number 3376891 and Part Number 3377438, fluorescent tracers, for fuel, oil, and coolant leaks.

Use in conjunction with Part Number 3376891 and Part Number 3377438, fluorescent tracers, for fuel, oil, and coolant leaks.

Used for sealing tee-joints. Replaces silicone sealant, Part Number 3823494.

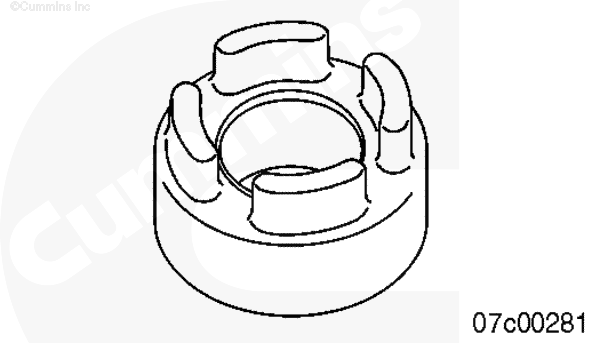

Used to remove and install the lubrication oil filter head adapter (Service Tool Kit 3165074 includes both lubrication oil filter head adapter and seal Loctite™ 2760).

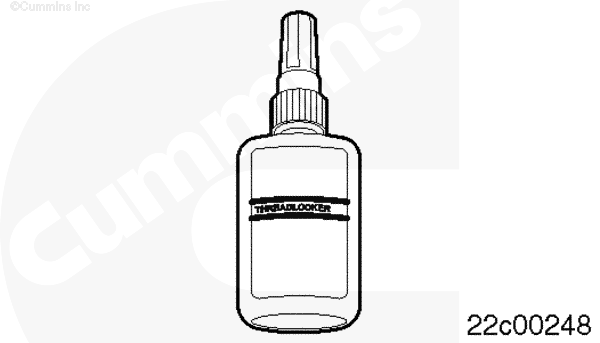

Loctite™ 2760 or Loctite™ 277 is used to secure the lubrication oil filter head adapter to the lubricating oil filter head (Service Tool Kit 3165074 includes both lubrication oil filter head adapter and seal Loctite™ 2760).

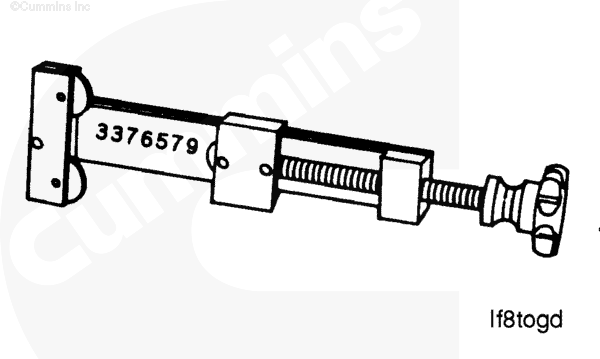

Used for inspection of the filter element.

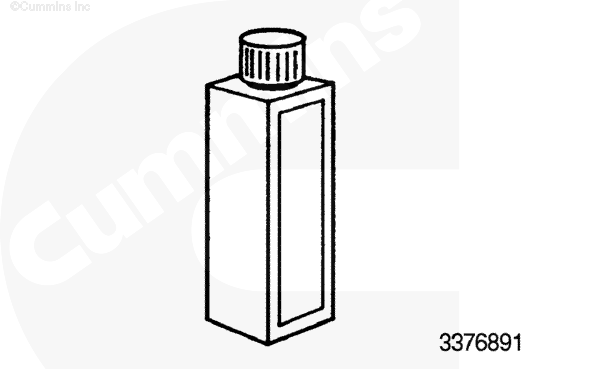

Added to oil. Used with black light to find leaks.

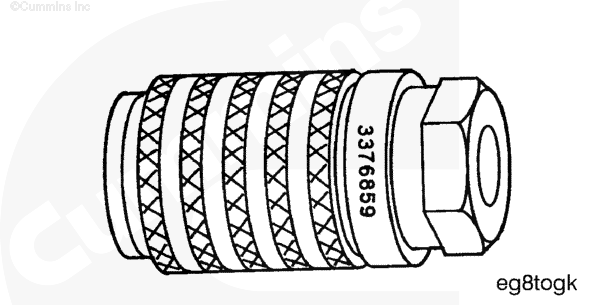

Used to connect the priming pump to the engine.

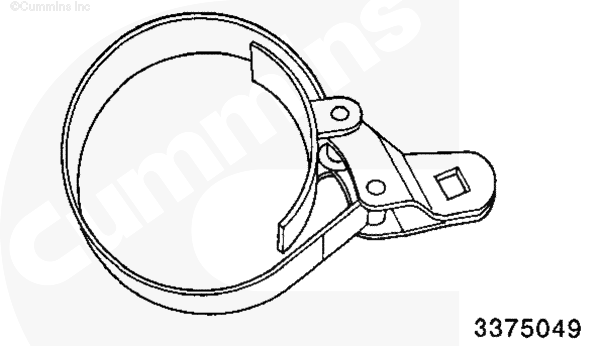

Used to remove spin-on filter. Replaces oil filter wrench, Part Number 3397929.

Used for sealing tee-joints.

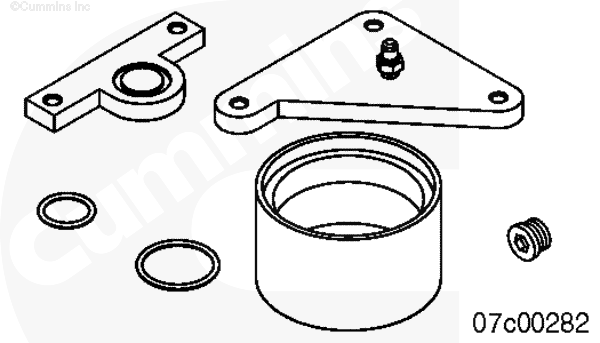

Used to pressurize the oil cooler assembly in order to check for leaks. Used with air pressure regulator, Part Number 3164231 or equivalent.

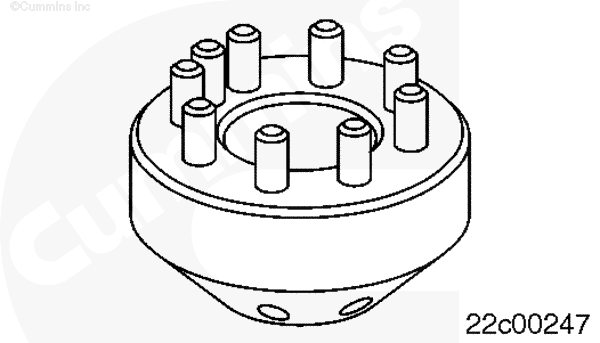

Used to remove and install the lubrication oil filter head adapter (Service Tool Kit 3165074 includes both lubrication oil filter head adapter and seal Loctite™ 2760). This filter head adapter replacer is equivalent to the filter head adapter replacer, Part Number 3165082.

Used to remove and install the remote lubrication oil filter head adapter.

Used to plug oil passages and drillings during a repair process.
