Centinel System – Repair Manual – 022-001   Service Tools

Cooling System

Tool Number

3163524
Pulley Alignment Tool

Used to align pulleys.
Tool Number

3164350
Thermostat Seal Driver

Used to install the thermostat seal in the thermostat housing to the correct specification.
Tool Number

3377438
Fluorescent Tracer

Used with black light, Part Number 3824754, to find coolant leaks.
Tool Number

3377462
Optical Tachometer

Used to measure engine rpm using reflective tape, Part Number 3377464.

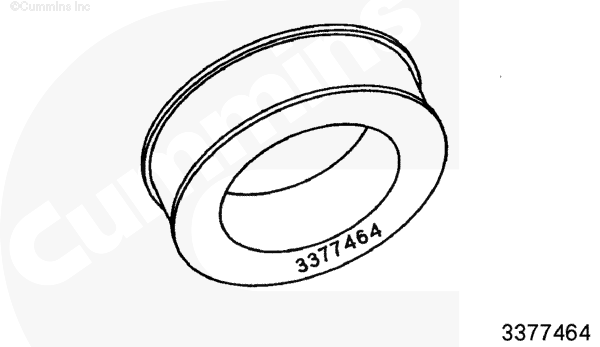

Tool Number

3377464
Reflective Tape (for optical tachometer, Part Number 3377462)

Used with optical tachometer, Part Number 3377462, to measure rpm.
Tool Number

3822666
Fluke Digital Temperature Measuring Instrument Kit

Used to measure temperatures for the fuel pump and injector test stands.
Tool Number

3822985
Combustion Gas Leak Test Kit

Used to detect combustion gas leaks. Includes test fluid, Part Number 3822986, adapter, Part Number 3822987, and instructions, Part Number 3877612.
Tool Number

3822988
Thermocouple Extension Wire Kit

Used with fluke digital temperature measuring instrument kit. Includes adapter, Part Number 3822989, thermocouple, Part Number 3822990, thermocouple wire assembly, Part Number 3822991, and bushing (1/8 NPT), Part Number 3822992.
Tool Number

CC-2602
Cooling System Test Kit – Fleetguard®

Used to measure supplemental coolant additive (SCA) concentration.
Tool Number

CC-2800
Refractometer

Used to measure glycol (antifreeze) concentration.

Last Modified:  13-Mar-2002
