Intake Manifold Temperature Sensor Circuit
|
Overview
| CODE | REASON | EFFECT |
| Fault Code: 153 PID: P105 SPN: 105 FMI: 3/3 LAMP: Yellow SRT: |
High voltage detected at the intake manifold temperature sensor circuit. |
Possible white smoke. Fan will stay on if controlled by the electronic control module (ECM). No engine protection for intake manifold temperature. |

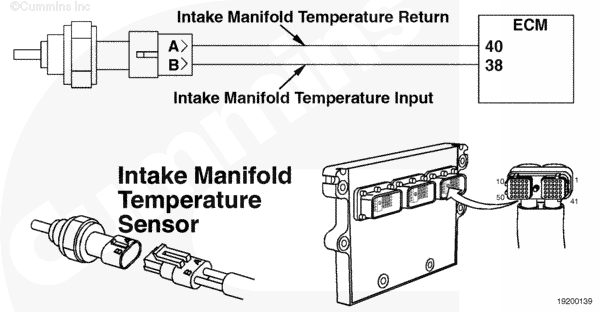

 Intake Manifold Temperature Sensor Circuit
|
Circuit Description
The intake manifold temperature sensor is used by the ECM to monitor the temperature of the engine intake air. The intake manifold temperature signal is used by the ECM for the engine protection system, timing, and fueling control.
Component Location
The intake manifold temperature sensor is located on the top front half of the intake manifold.
Shop Talk
The resistance of the sensor varies with the temperature. Compare your reading to this table:
|
Temperature (°C)
|
Temperature [°F]
|
Resistance (ohms)
|
|
0
|
32
|
30k to 36k
|
|
25
|
77
|
9k to 11k
|
|
50
|
122
|
3k to 4k
|
|
75
|
167
|
1350 to 1500
|
|
100
|
212
|
600 to 675
|
Refer to Troubleshooting Fault Code t05-153
Last Modified: 02-Sep-2010
