Electronic Control System ISM and QSM11 Engines – FAULT CODE 223

Burn Valve Solenoid Fault


Overview

CODE REASON EFFECT
Fault Code: 223
PID: S085
SPN: 1265
FMI: 4/4
LAMP: Yellow
SRT:

Incorrect voltage detected at the Centinel™ actuator circuit by the ECM.

None on performance. Centinel™ deactivated.
Burn Valve Solenoid
SMALL | MEDIUM | LARGE

Circuit Description

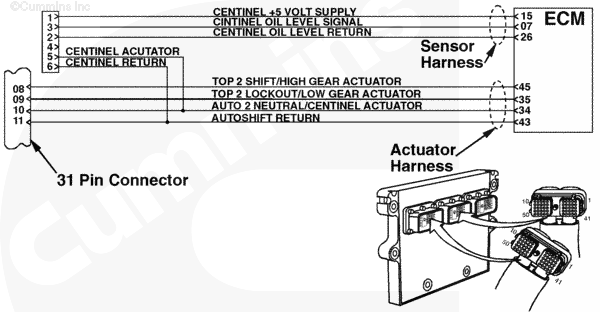

The burn valve solenoid controls the flow of oil into the fuel drainline during the burn cycle.

Component Location

The burn valve solenoid is on top of the oil control valve. The oil control valve is on the left side of the engine below the fuel delivery housing.

Refer to Troubleshooting Fault Code t05-223
