Electronic Control System ISM and QSM11 Engines – FAULT CODE 255

Fuel Shutoff Solenoid Supply Circuit


Overview

CODE REASON EFFECT
Fault Code: 255
PID: S017
SPN: 632
FMI: 3/3
LAMP: Yellow
SRT:

Externally supplied voltage detected going to fuel shutoff solenoid supply circuit.

None on performance. Fuel shutoff valve stays on.

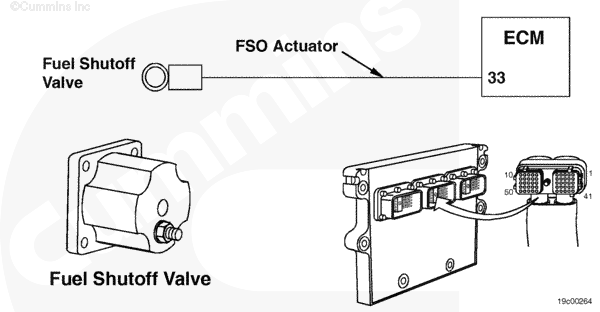

Fuel Shutoff Circuit
SMALL | MEDIUM | LARGE

Circuit Description

If voltage is externally supplied to the fuel shutoff valve, it will stay open.

Component Location

The fuel shutoff solenoid is located on the fuel pump housing near the fuel outlet line. Unspecified earlier versions used a dedicated return wire (pin 32) that is mounted to one of the shutoff solenoid mounting bolts. Newer models use only a fuel shutoff supply wire (pin 33).

Shop Talk

If there is an external shutdown system on the vehicle, make sure it is not wired incorrectly and feeding voltage into the fuel shutoff supply circuit.

Refer to Troubleshooting Fault Code t05-255
