ISM, ISMe, and QSM11 – 022-001   Service Tools

Injectors and Fuel Lines

Tool Number

ST-434
Vacuum Gauge 0-763 mm-Hg [0 to 30 in. Hg]

Used to check fuel inlet restriction. Hose adapters, Part Numbers ST-434-1, 3375845, and 3376922, are required and must be ordered separately.
Tool Number

ST-434-1
Hose Adapter

Used with the vacuum gauge, Part number ST-434. The hose adapter is used with a Number 8 hose.
Tool Number

ST-434-2
Hose Adapter

Used with the vacuum gauge, Part number ST-434. The hose adapter is used with a Number 10 hose.
Tool Number

3375845
Hose Adapter

Used with the vacuum gauge, Part number ST-434. The hose adapter is used with a Number 12 hose.
Tool Number

3376922
Hose Adapter

Used with the vacuum gauge, Part number ST-434. The hose adapter is used with a Number 16 JIC hose.
Tool Number

3164383
Sight Glass

Used with a number 10 hose to check for air in the fuel suction.
Tool Number

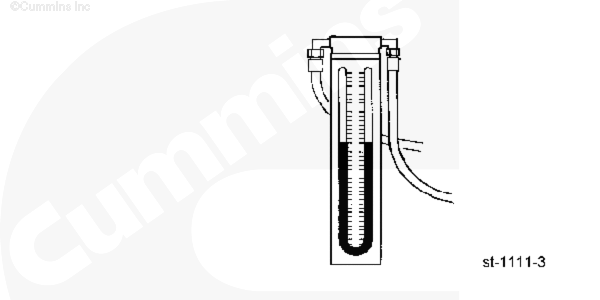

ST-1111-3
Mercury-Filled Slack Tube Manometer

Used to measure the fuel drain line restriction.
Tool Number

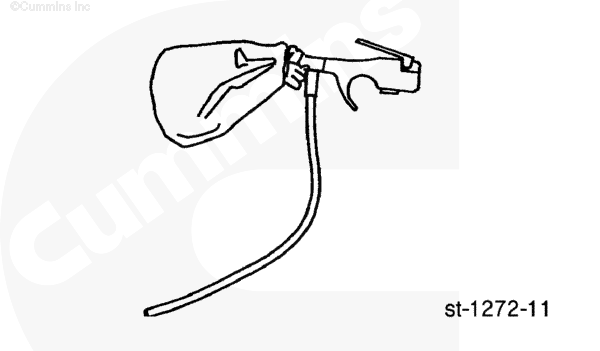

ST-1272-11
Chip Removing Unit

Used to remove carbon from the top of the piston.
Tool Number

3823461
Super Chip Vacuum Kit

Used to remove small machining chips during salvage operations.
Tool Number

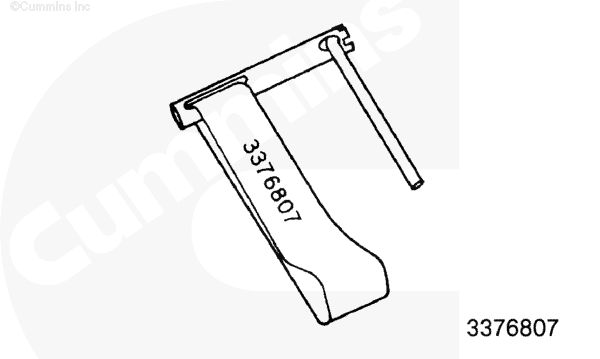

3376807
Filter Wrench

Used to remove or tighten spin-on fuel filters.
Tool Number

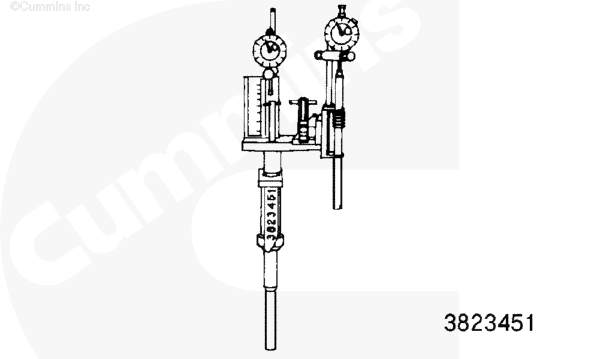

3823451
Static Injection Timing Tool

Used to measure static timing.
Tool Number

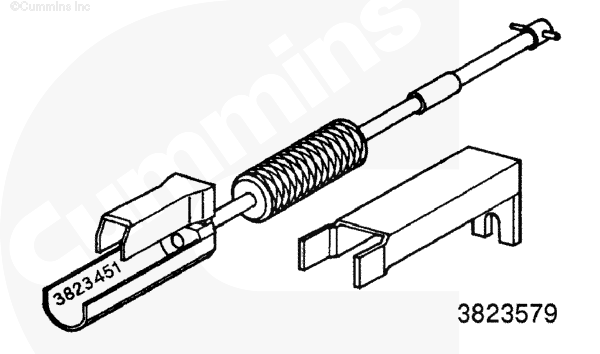

3823579
CELECT™ Injector Puller and Driver Assembly

Used to remove and install CELECT™ injectors.

Last Modified:  22-May-2006
