Cooling System
|
TOC |

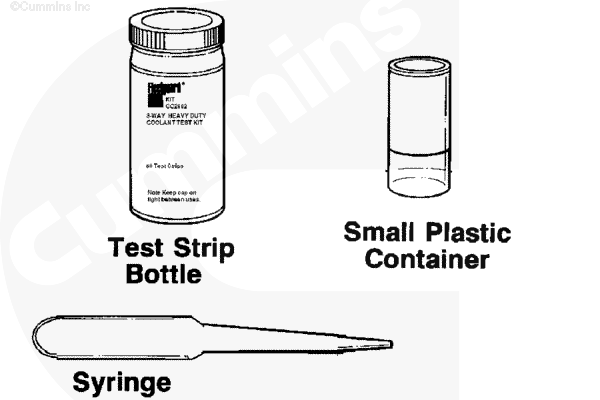

| Tool Number
CC-2602 |
Cooling System Test Kit
The Fleetguard® coolant test kit is used to check the concentration of coolant additives in the cooling system.
|
|
| Tool Number
CC-2800 |
Refractometer
The Fleetguard® refractometer is used to measure the freezing point protection and antifreeze concentration.
|
|

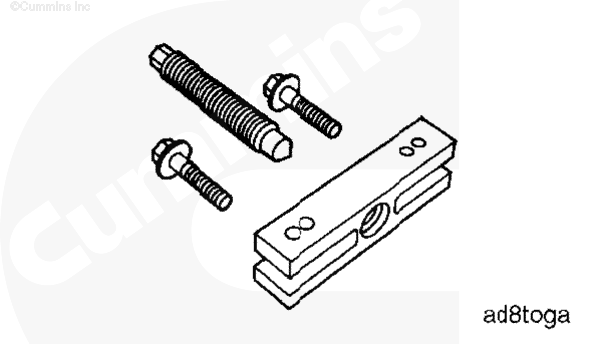

| Tool Number
ST-647 |
Standard Puller
Use to remove the stamped steel water pump pulley. Use in conjunction with two capscrews 5/16 x 18 x 2.
|
|

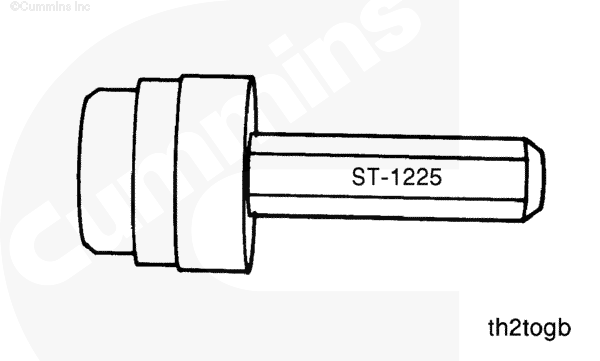

| Tool Number
ST-1225 |
Thermostat Seal Mandrel
Use to install the thermostat seal in the thermostat housing.
|
|
| Tool Number
ST-1293 |
Belt Tension Gauge
Use to measure the fan drive v-ribbed belt tension.
|
|
| Tool Number
3376326 |
Pulley Installation Tool
Used to install drive pulleys. Use in conjunction with Part Number 3377401 adapter.
|
|
| Tool Number
3377462 |
Digital Optical Tachometer
Used to measure rpm of a viscous fan.
|
|

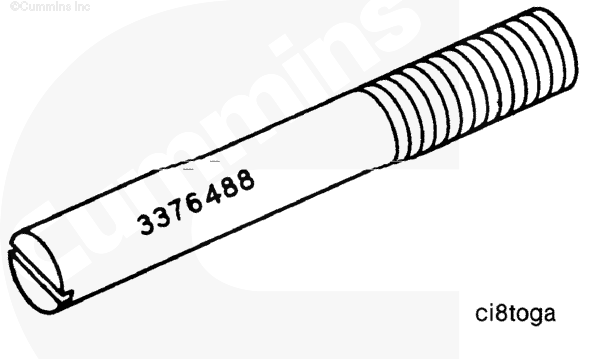

| Tool Number
3376488 |
Guide Pin
Two guide pins are used to install the water heater plate.
|
|

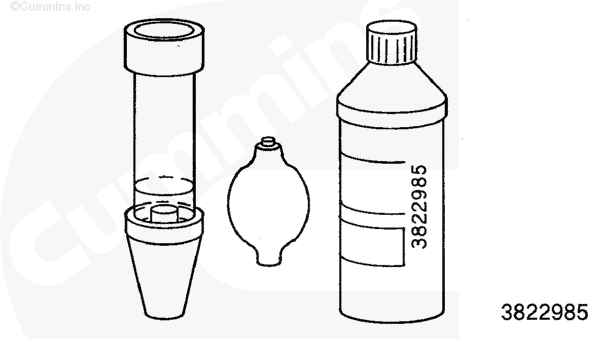

| Tool Number
3822985 |
Combustion Gas Leak Test Kit
Includes: Part No. 3822986, test fluid; Part No. 3822987, adapter; and Part No. 3877612, instructions.
|
|

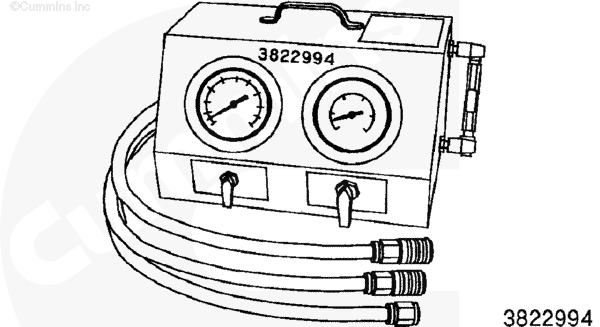

| Tool Number
3822994 |
Coolant Pressure/Temperature/Flow Analyzer Kit
Includes: Part Number 3822995 pressure gauge; Part Number 3822996, temperature gauge; Part Number 3822997, flow sight glass, Part Number 3822998 Compuchek™ fitting (Female); and Part Number 3377613, instructions. Optional: Part Number 3823099, hose extension kit, is also available.
|
|

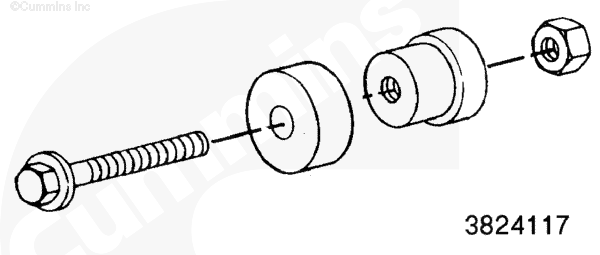

| Tool Number
3824117 |
Bearing Installation Tool
Used to replace the water pump drive needle bearing in the gear housing.
|
|
| Tool Number
3823815 |
Water Pump Seal Driver
Used to install the unitized seal in the water pump. For use on engines with EGR. For use with Chicago-Allis™ seal. The seal is identified by the Cummins® part number
only.
|
|
| Tool Number
4918797 |
Water Pump Seal Driver
Used to install the unitized seal in the water pump. For use on engines with EGR. For use with Kaco™ seals. The seal is identified by the Kaco™ name.
|
|
|
Last Modified: 08-Jan-2008
