ISM, ISMe, and QSM11 – 200-006   Flow Diagram, Compressed Air System

Compressed Air System

 TOC

Cummins®

SMALL | MEDIUM | LARGE

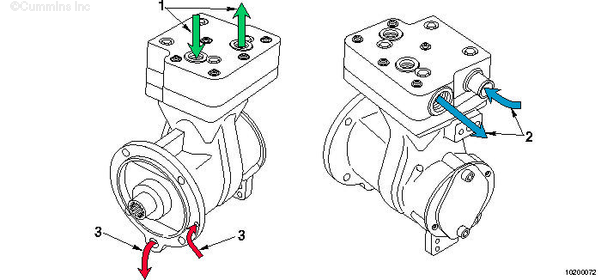

  1. Coolant
  2. Air
  3. Lubricant.

Holset® Models

SMALL | MEDIUM | LARGE

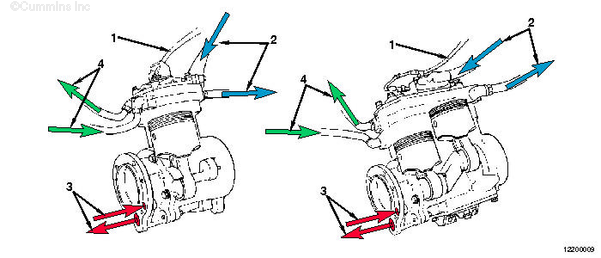

  1. Air governor signal
  2. Air
  3. Lubricant
  4. Coolant.
