ISBe/ISB Series Engines – 200-005   Flow Diagram, Exhaust System

Table of Contents

General Information

General Information

 TOC

SMALL | MEDIUM | LARGE

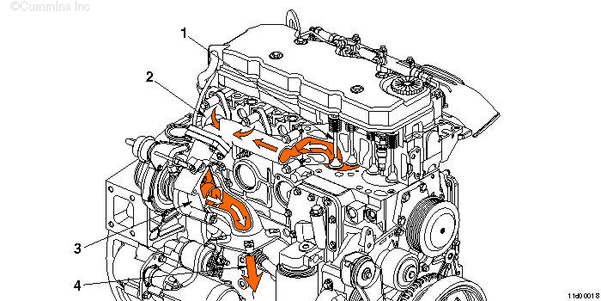

Without EGR

  1. Exhaust valve
  2. Exhaust manifold
  3. Turbocharger
  4. Turbocharger exhaust outlet.

SMALL | MEDIUM | LARGE

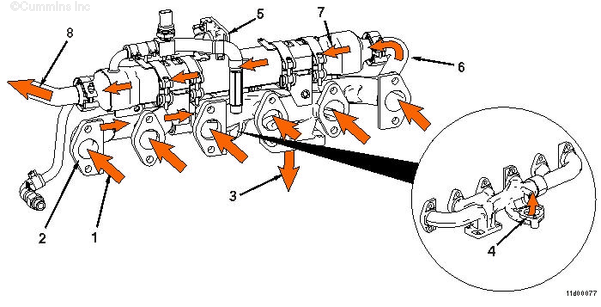

With EGR

  1. Exhaust gas to manifold
  2. Exhaust manifold
  3. Exhaust gas to turbocharger
  4. Exhaust gas to EGR valve
  5. EGR valve
  6. Exhaust gas from EGR valve to EGR cooler connection
  7. EGR cooler
  8. Cooled exhaust gas to EGR connection tube and EGR mixer.
Last Modified:  31-Oct-2005
