CM871 and CM876 Electronic Control Systems, ISX and ISM Engines – FAULT CODE 2733

  Printable Version

Overview

ISX and ISM – Aftertreatment Fuel Drain Valve Circuit SMALL | MEDIUM | LARGE

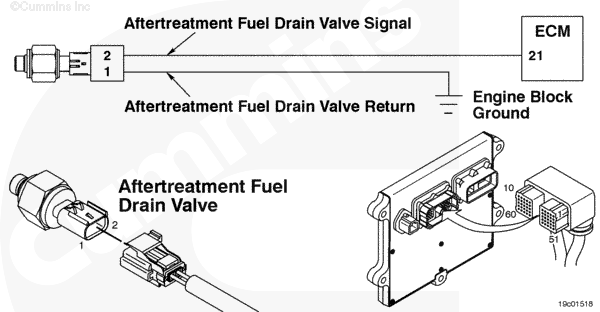

Circuit Description

The aftertreatment fuel drain valve is used to disable the fuel supply to the aftertreatment system.

Component Location

The aftertreatment fuel drain valve sensor is located in the aftertreatment shutoff valve assembly. For a detailed component location view, go to the following procedure.Refer to Procedure 100-002 in Section E

Conditions for Running the Diagnostics

This diagnostic runs within the first 30 seconds of the engine starting and prior to active regenerations of the diesel particulate filter.

Conditions for Setting the Fault Codes

The aftertreatment fuel drain valve circuit pulse width modulated (PWM) signal is detected to be at 0-VDC when the PWM voltage is turned on.

Action Taken When the Fault Code is Active

• The electronic control module (ECM) illuminates the amber CHECK ENGINE light immediately when the diagnostic runs and fails.
• Active aftertreatment diesel particulate filter regeneration will be disabled.

Conditions for Clearing the Fault Code

The ECM will turn off the amber CHECK ENGINE light immediately after the diagnostic runs and passes.

The fault code will clear within 30 seconds of starting the engine or prior to an active regeneration event of the diesel particulate filter.

Shop Talk

Verify the electronic control module (ECM) calibration is correct. Check the calibration revision history found on QuickServe™ Online for applicable fixes to the calibration stored in the ECM. If necessary, calibrate the ECM. Use the following procedure in the corresponding Troubleshooting and Repair Manual for the engine being serviced. Refer to Procedure 019-032 in Section 19.

Possible causes of this fault code include:

• Open return circuit in the engine harness, connectors, or shutoff valve
• A shorted aftertreatment fuel drain valve.

Refer to Troubleshooting Fault Code t05-2733
