CM2150 Electronic Control System – FAULT CODE 196

  Printable Version

Overview

ISB, ISC, and ISL CM2150 – Coolant Level Sensor 1 Circuit SMALL | MEDIUM | LARGE

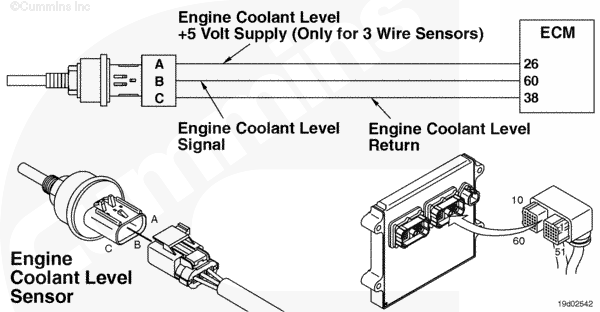

Circuit Description

The ECM provides a 5 volt supply to the engine coolant level sensor using a common sensor SUPPLY circuit. The ECM also provides a ground on the sensor RETURN circuit. The engine coolant level sensor provides a signal to the ECM on the engine coolant level sensor SIGNAL circuit. This sensor signal voltage changes based on the coolant level in the expansion tank.

Component Location

The engine coolant level sensor is typically located in the radiator top tank or surge tank. Refer to the OEM service manual.

Conditions for Running the Diagnostics

This diagnostic runs continuously when the keyswitch is in the ON position.

Conditions for Setting the Fault Codes

The ECM detects that the coolant level signal voltage is less than 0.5-VDC for more than 1 second.

Action Taken When the Fault Code is Active

• The ECM illuminates the amber CHECK ENGINE light immediately when the diagnostic runs and fails.
• No engine protection will be available for low coolant level.

Conditions for Clearing the Fault Code

The ECM will turn off the amber CHECK ENGINE light immediately after the diagnostic runs and passes.

Shop Talk

Verify the ECM calibration is correct. Check the calibration revision history found on QuickServe™ Online for applicable fixes to the calibration stored in the ECM. If necessary, calibrate the ECM. Refer to Procedure 019-032 in Section 19.

Possible causes of this fault code include:

• Open signal circuit in the engine harness, connectors, or sensor
• Signal circuit shorted to ground in the engine harness, connector, or sensor
• Damaged sensor.

Refer to Troubleshooting Fault Code t05-196 (3-wire).
