Cummins N14 STC, Celect, Celect Plus – Service Manual 022-001   Service Tools

Table of Contents

Lubricating Oil System

Lubricating Oil System

 TOC
Tool Number

ST-1273
Pressure Gauge

Used to measure the engine intake manifold pressure.

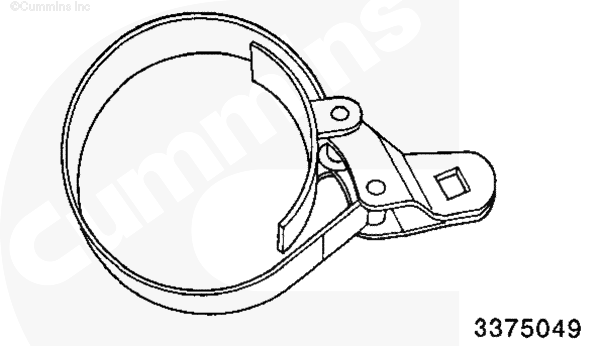

Tool Number

3375049
Oil Filter Wrench

Used to remove the spin-on filter.
Tool Number

3375182
Valve Spring Fixture

Used to measure the spring force at a given spring height.

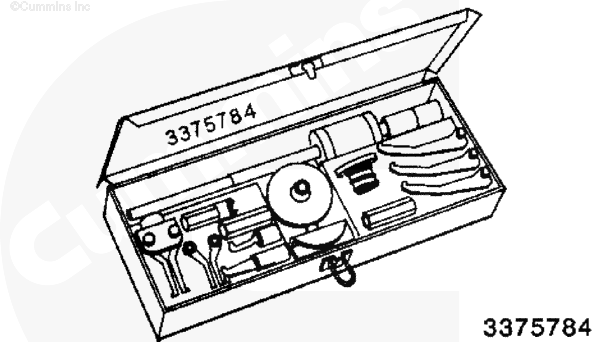

Tool Number

3375784
Light Duty Puller Kit

Used to remove the high oil pressure regulator retainer plug.

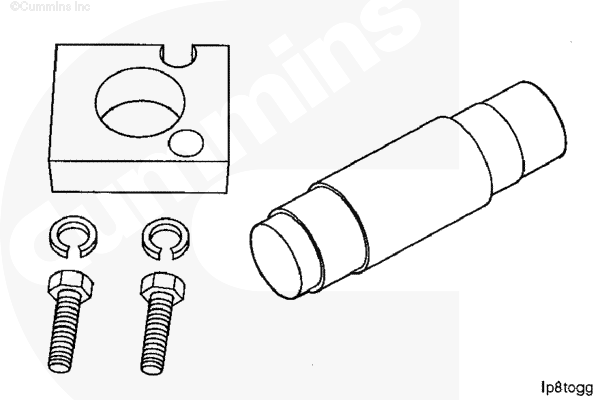

Tool Number

3376011
DFC Pressure Valve Fixture

Used to install the high pressure limit valve assembly into the demand flow cooling (DFC) lubricating oil pump.

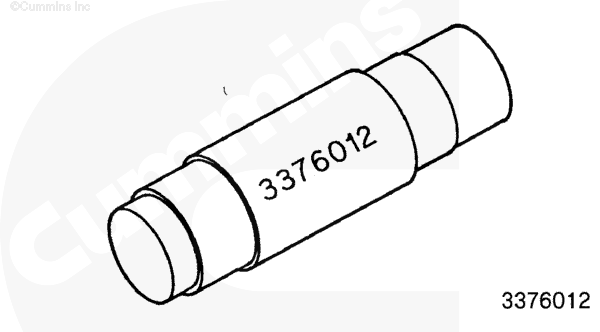

Tool Number

3376012
DFC Pressure Valve Mandrel

Part of DFC Pressure Valve, Part Number 3376011.

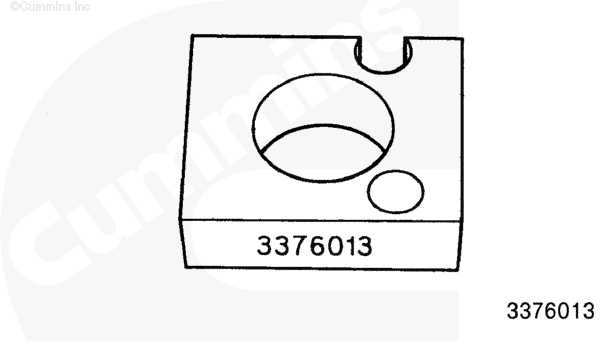

Tool Number

3376013
DFC Pump Locating Plate

Part of DFC Pressure Valve Mandrel, Part Number 3376011.

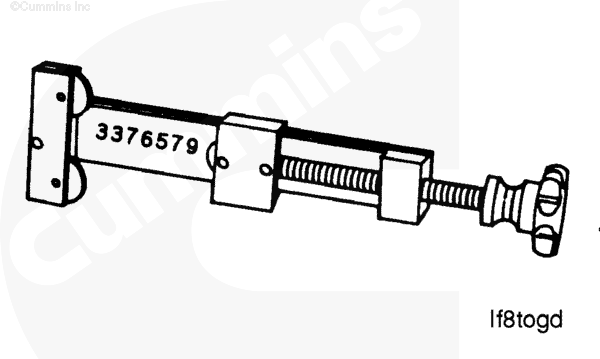

Tool Number

3376579
Tube Cutter

Used to open spin-on oil filters for troubleshooting and analysis.

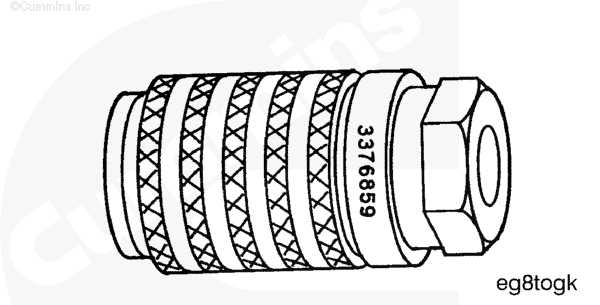

Tool Number

3376859
Female Quick Connect Coupler

Used to connect the priming pump to the 9/16-18 UNF Compulink® coupling nipple on the engines.
Tool Number

3376891
Fluorescent Tracer Dye

Add to oil. Used with black light to find leaks.
Tool Number

3377394
Battery Black Light/Lamp

Used in conjunction with fluorescent tracers, Part Number 3376891 and Part Number 3377438, for fuel, oil, and coolant leaks.

Last Modified:  30-Aug-2011
