Diesel Engine Troubleshooting

Detroit Series 60 Front Mounted Power Take-off Removal

without comments

Perform the following steps to remove the PTO assembly:

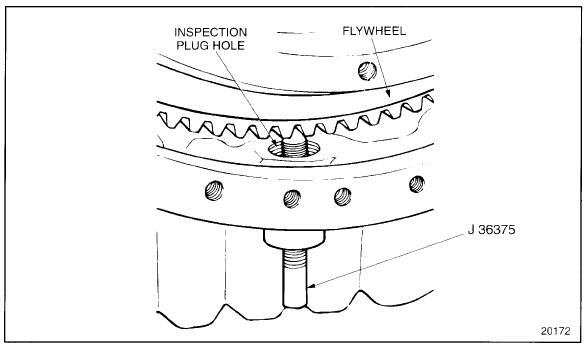

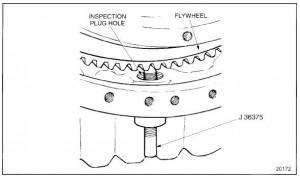

1. Remove the inspection plug in the bottom of the flywheel housing and install the J 36375–A

Detroit Series 60 Front Mounted Power Take off Removal 1 300x177 Detroit Series 60 Front Mounted Power Take off Removal

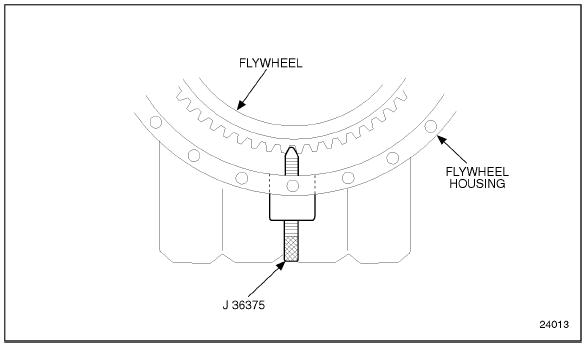

2. Thread the center screw of the J 36375–A into the flywheel housing until the tip of the tool rests between two teeth of the flywheel ring gear. Finger-tighten the knurled knob;

Detroit Series 60 Front Mounted Power Take off Removal 2 300x177 Detroit Series 60 Front Mounted Power Take off Removal

Written by Ed

September 2nd, 2011 at 4:21 pm

Posted in Detroit Diesel Series 60
