Paccar MX-13 – Fixing supply pipe dosing module, fuel

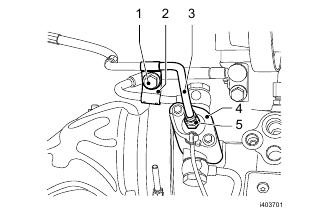

1. Fit the union nut (5) onto the fuel dosing module (4), and tighten it to the specified torque.

2. Position the clip, and tighten the attachment bolt (1) to the specified torque.

3. Install the heat shield.
