Engine Family: See Below
This tool can be purchased as a kit to install and remove cam bushings in the cylinder block or individual kits are available for specific engine model series. A hydraulic ram provides the necessary force to install or remove the cam bushings. An air over hydraulic pump powers the hydraulic ram.
NOTE: Instructions for using this tool and component groups is covered in Instruction Bulletin 3377780.

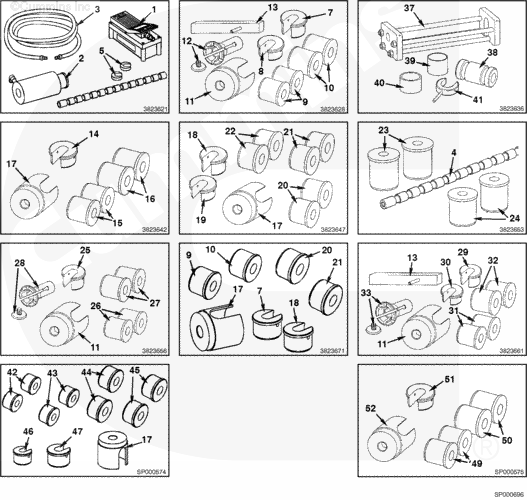

| Ref. No. | Part No. | Description |
| 3162248 | All the below assemblies | |
| 3823621 | Cam Bushing Hydraulic Actuator Kit (Needed for all kits below) | |
| 1 | 3823622 | Air/Hydraulic Pump |
| 2 | 4918216 | Cylinder, Hydraulic |
| 3 | 3823624 | Hydraulic Hose |
| 4 | 3823625 | Cam Bushing Shaft |
| 5 | 3823626 | Stop Collar |
| 3823770 | Storage Case | |
| 3823628 | Cam Bushing Installation/Removal Kit (NH, V903 Thickwall Bushing (2.687 cam bore)) Note: 3823636 cylinder support is also required. | |
| 7 | 3823629 | Driver (NH (2 ½) 3 and 5 thickwall) |
| 8 | 3823630 | Driver (V903, NH (2 ½) 1, 2, 4, 6 & 7 thickwall) |
| 9 | 3823631 | Centering Guide (NH, V903) (with bushing) |
| 10 | 3823632 | Centering Guide (NH, V903) (without bushing) |
| 11 | 3823633 | Receiver Spacer |
| 12 | 3823634 | Bushing Puller (NH) |
| 13 | 3823635 | Bushing Alignment Pointer |
| 3823642 | Cam Bushing Installation/Removal Kit (L10) | |
| 14 | 3823643 | Driver |
| 15 | 3823644 | Centering Guide (with bushing) |
| 16 | 3823645 | Centering Guide (without bushing) |
| 17 | 3823646 | Receiver Spacer |
| 3823647 | Cam Bushing Installation/Removal Kit (K19) | |
| 18 | 3823648 | Driver (K19, KV thinwall (3.1880)) |
| 19 | 3823649 | Driver (K19, KV thickwall (3.2540)) |
| 20 | 3823650 | Centering Guide (K19 (with bushing)) |
| 21 | 3823651 | Centering Guide (K19 (without bushing) (3.1880)) |
| 22 | 3823652 | Centering Guide (K19 (without bushing) (3.2540)) |
| 17 | 3823646 | Receiver Spacer |
| 3823653 | Cam Bushing Centering Guide Kit (K38, K50 (used with 3823647)) | |
| 23 | 3823654 | Centering Guide (KV (with bushing)) |
| 24 | 3823655 | Centering Guide (KV (without bushing)) |
| 4 | 3823625 | Cam Bushing Shaft |
| 3823656 | Cam Bushing Installation/Removal Kit (V28) (use with 3823636 cylinder support kit) | |
| 25 | 3823657 | Driver |
| 26 | 3823658 | Centering Guide (with bushing) |
| 27 | 3823659 | Centering Guide (without bushing) |
| 28 | 3823660 | Cam Bushing Puller |
| 11 | 3823633 | Receiver Spacer |
| 3823661 | Cam Bushing Installation/Removal Kit (NH, (2 in. cam) (use with 3823636 cylinder support kit)) | |
| 29 | 3823662 | Driver (3 and 5) |
| 30 | 3823663 | Driver (1, 2, 4, 6 and 7) |
| 31 | 3823664 | Centering Guide (with bushing) |
| 32 | 3823665 | Centering Guide (without bushing) |
| 33 | 3823666 | Cam Bushing Puller |
| 11 | 3824518 | Receiver Spacer |
| 13 | 3823635 | Bushing Alignment Pointer (NH 2 in. & 2 ½ in.) |
| 3823667 (Ref. 3823628 Line Art) |
Cam Bushing Installation/Removal Kit (NH, V903 2 ½ cam thinwall. (Use with 3823628 and 3823636)) | |
| 7 | 3823668 | Driver (NH (thinwall) 3 and 5) |
| 8 | 3823669 | Driver (V903, NH (2 ½) 1, 2, 4, 6 & 7) thickwall) |
| 10 | 3823670 | Centering Guide (V903, NH 2 ½ (thinwall) without bushing) |
| 3823671 | Cam Bushing Installation/Removal Kit (V903 600 hp) | |
| 7 | 3823629 | Driver (1) |
| 18 | 3823648 | Driver (2, 3, 4 and 5) |
| 9 | 3823631 | Centering Guide (1 (with bushing)) |
| 10 | 3823632 | Centering Guide (1 (without bushing)) |
| 20 | 3823650 | Centering Guide (2, 3, 4 and 5 (with bushing)) |
| 21 | 3823651 | Centering Guide (2, 3, 4 and 5 (without bushing)) |
| 17 | 3823646 | Receiver Spacer |
| 3823636 | Cam Bushing Hydraulic Cylinder Support Kit (All Engines) | |
| 37 | 4918249 | Support |
| 38 | 3823638 | Pusher Cradle Mandrel (NH, V28) |
| 39 | 3823639 | Pusher Cradle Mandrel (Adapter, NH 2 ½ cam) |
| 40 | 3823640 | Pusher Cradle Mandrel (Adapter, V28 2 1/8 cam) |
| 41 | 3823641 | Cradle Stop Collar |
| 4918246 | Spacer Not included in Kit: Available separately for service replacement on old 3823637 units still used in field service | |
| 3824863 | Cam Bushing Install/Remove Kit (QSK 19) | |
| 14 | 3824862 | Cam Bushing Driver |
| 17 | 3824864 | Receiver Spacer |
| 16 | 3824865 | Centering Guide |
| 15 | 3823652 | Centering Guide |
| 3162249 | Cam Bushing Install/Remove Kit (B Series) | |
| 14 | 3162250 | Driver |
| 15 | 3162251 | Centering Guide (w/bushing) |
| 16 | 3162252 | Centering Guide (wo/bushing) |
| 17 | 3823633 | Receiver/Spacer |
| 3162253 | Cam Bushing Install/Remove Kit (C Series) | |
| 14 | 3162254 | Driver |
| 15 | 3162255 | Centering Guide (w/bushing) |
| 16 | 3162256 | Centering Guide (wo/bushing) |
| 17 | 3823633 | Receiver/Spacer |
| 3162257 | Cam Bushing Install/Remove Kit (QST Series) | |
| 14 | 3162258 | Driver |
| 15 | 3162259 | Centering Guide (w/bushing) |
| 16 | 3162260 | Centering Guide (wo/bushing) |
| 17 | 3823633 | Receiver/Spacer |
| 3164088 | Cam Bushing Inst/Removal Kit Sig/ISX, QSK15 | |
| 42 | 3163018 | Valve camshaft centering guide (with bushing) |
| 43 | 3163019 | Valve camshaft centering guide (without bushing) |
| 46 | 3163032 | Camshaft replacer driver |
| 3164089 | Cam Bushing Inst/Removal Kit Sig/ISX, QSK15 | |
| 44 | 3164090 | Injector camshaft centering guide (with bushing) |
| 45 | 3164287 | Injector camshaft centering guide (without bushing) |
| 47 | 3163033 | Injector camshaft replacer driver |
| 17 | 3824864 | Receiver spacer |
| Not Included In Kit: | ||
| 3824518 | Receiver Spacer | |
| 3163015 | Cam Bushing Install/Remove Kit (QSKV45/60 | |
| 49 | 3163034 | Cam Bushing Ctr. Guide (w/bushing) |
| 50 | 3163035 | Cam Bushing Ctr. Guide (wo/bushing) |
| 51 | 3163036 | Cam Bushing Driver |
| 52 | 3163037 | Spacer |
Last Modified: 05-Jul-2006
