Engine Family: See Below
ST 1228 Kit is no longer available as a kit. Order engine application kits as needed. All spare parts are still available. These bushing mandrels are used to remove and/or install cam bushings in the cylinder block. It is suggested that 3376637 Driver Set be ordered and then select the appropriate driver mandrel kit for the engine model being serviced. The “Pullers” are designed to remove the rear cam bushing without removing the flywheel housing.

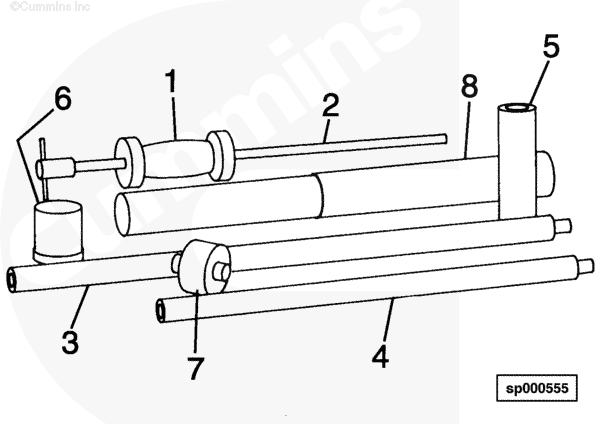

| Ref. No. | Part No. | Description |
| 3376637 | Driver Assembly (all) | |
| 1 | ST 1228-1 | Slide Hammer |
| 2 | ST 1228-2 | Rod |
| 3 | ST 1228-3 | Mandrel Shank |
| 4 | ST 1228-4 | Shaft Assembly |
| 3376626 | Kit for C & J | |
| 5 | ST 1228-7 | Guide |
| 6 | ST 1228-11 | Driver |
| 3376627 | Kit for H/NH (2.129 cam bore) | |
| 5 | ST 1228-5 | Guide |
| 6 | ST 1228-9 | Driver |
| 7 | ST 1228-13 | Puller |
| 3376628 | Kit for V378, V504 (2.1265 cam bore) | |
| 5 | ST 1228-5 | Guide |
| 6 | ST 1228-9 | Driver |
| 3376629 | Kit for V28 | |
| 5 | ST 1228-8 | Guide |
| 6 | ST 1228-12 | Driver |
| 3376630 | Kit for V903, V555 (2.625 cam bore) | |
| 5 | 3375154 | Guide |
| 6 | ST 1228-10 | Driver |
| 3376631 | Kit for V903 (2.687 cam bore) | |
| 5 | ST 1228-6 | Guide |
| 6 | 3375861 | Driver |
| 3376632 | Kit for NH Big Cam (2.627 cam bore) | |
| 5 | 3375154 | Guide |
| 6 | ST 1228-10 | Driver |
| 7 | 3822782 | Puller |
| 3376633 | Kit for NH Big Cam (2.687 cam bore) | |
| 5 | ST 1228-6 | Guide |
| 6 | 3375861 | Driver for No. 7 |
| 6 | 3376412 | Driver, all others |
| 7 | 3822782 | Puller |
| 3376634 | Kit for K19, K38, K50 (3.188 cam bore) | |
| 6 | ST 1228-19 | Driver |
| 7 | 3822781 | Puller |
| 3376635 | Kit for K19 (3.254 cam bore) | |
| 5 | 3375862 | Guide |
| 6 | 3375864 | Driver |
| 7 | 3822781 | Puller |
| 3376636 | Kit for L10 | |
| 5 | 3376069 | Guide |
| 6 | 3376070 | Driver |
| Puller Pin Repair Kits may be ordered per the following: 3376429 to repair ST 1228-12 Puller 3822783 to repair 3822781 and 3822782 Puller |
||
| These may be ordered separately as desired. | ||
| 8 | 3376037 | Driver (V378, V504, V555 (2.187 cam bore)) |
| 8 | 3376143 | Driver (V378, V504, V555 (2.687 cam bore)) |
| Note: Use ST 1228-1 and ST 1228-2 with these drivers. | ||
| 3823312 Cam Bushing Driver Kit is available separately to install and remove cam bushings for V903 525, 600 & 660 HP series engines. For 3” CAM BORE. | ||
| 3823312 Contains the following: | ||
| 6 | 3375861 | Driver Mandrel |
| 3376637 | Slide Hammer Kit | |
| 1 | ST 1228-1 | Slide Hammer |
| 2 | ST 1228-2 | Rod Assembly |
| 3 | ST 1228-3 | Mandrel Shank |
| 4 | ST 1228-4 | Shaft Assembly |
Last Modified: 31-Jul-2003
